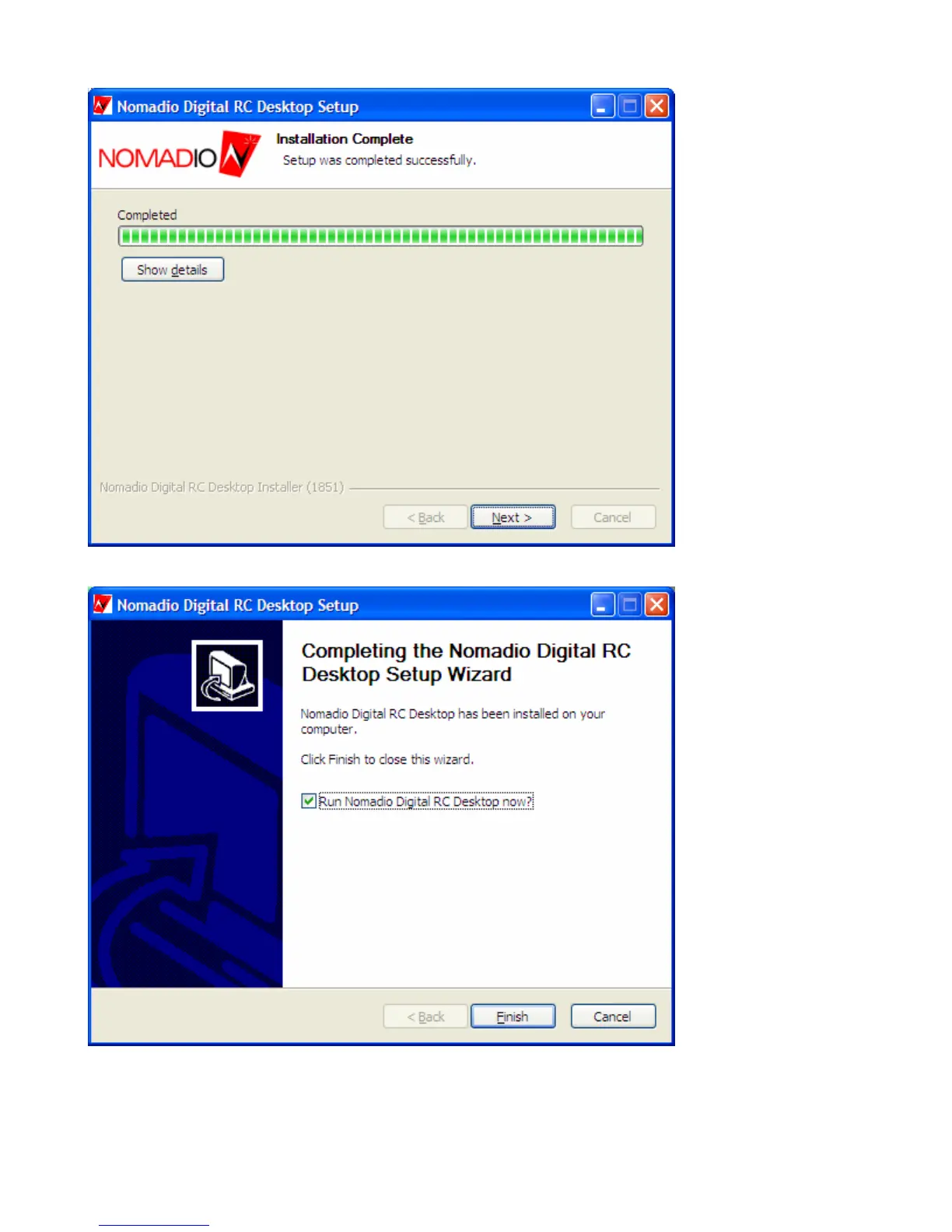

.Digital RC Desktop Setup is now almost done. Click Next to continue.

.Leave the Run Nomadio Digital RC Desktop now? checkbox selected for the Setup Wizard to launch

the program after exiting the Setup Wizard. Click Finish to exit the Nomadio Digital RC Desktop

Setup.
