Using Softkeys

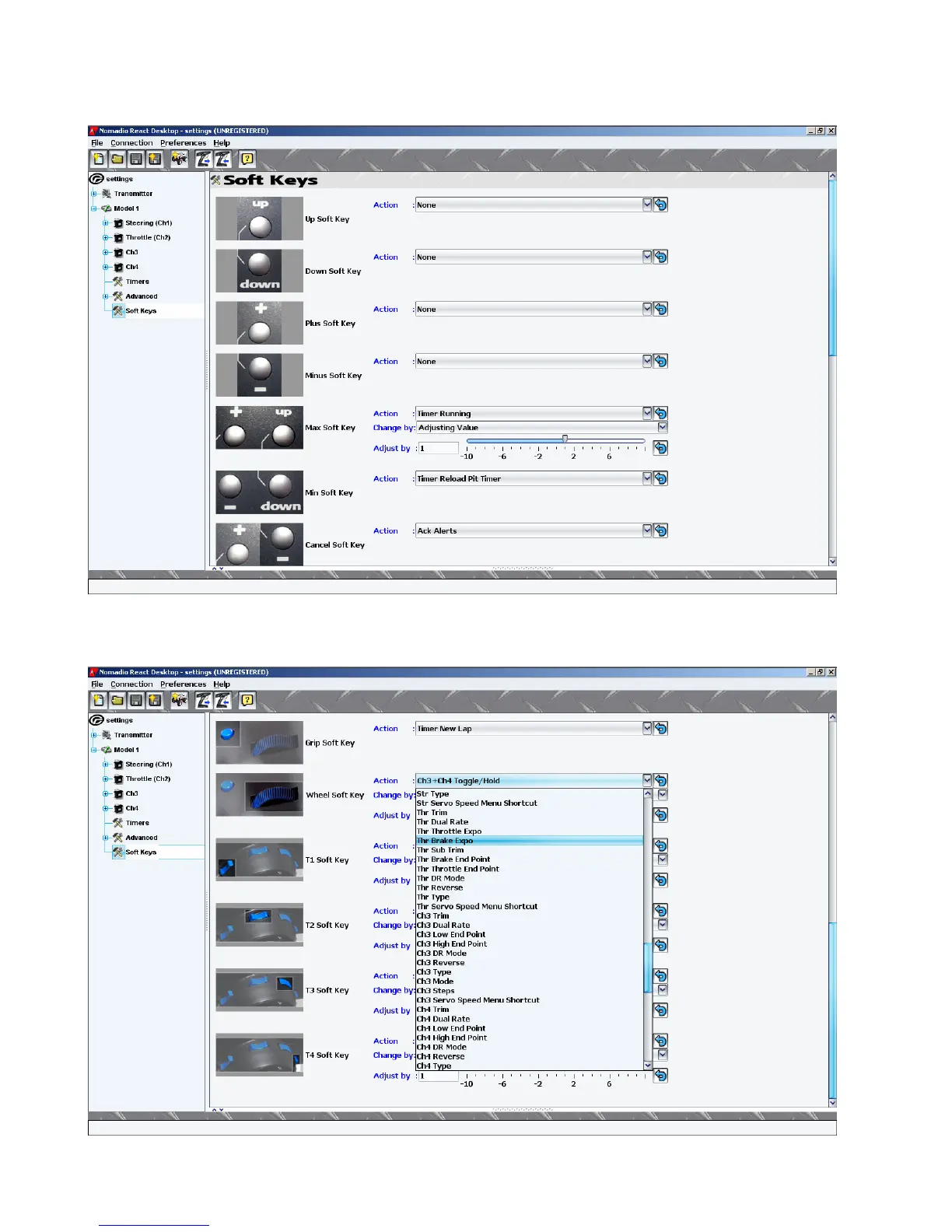

Softkeys allows you to choose the function of the button and trims on the React. Click on the pull down

button and choose the function you would like that button or trim tab to

control.
