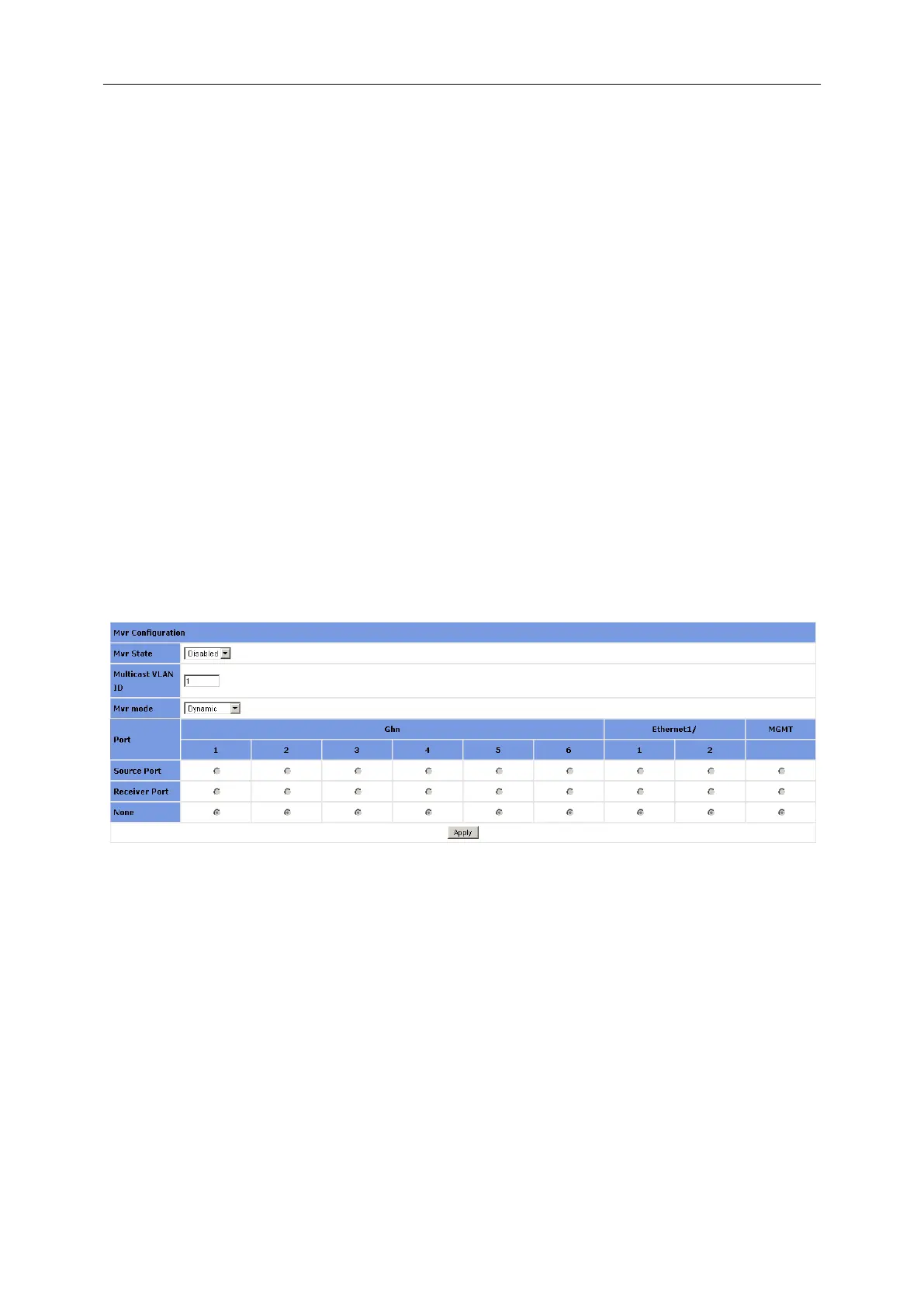

3 Web-based Management
that MVR Group is not configured, multicast data received by the
switch is forwarded to all ports, regardless of the port MVR
membership setting. In the case that MVR Group is successfully
configured, the multicast data is forwarded only to those joined
receiver ports set by MVR static configuration.
Dynamic mode The switch sends IGMP “leave” and “join” reports through the
source port(s) to the other multicast devices (such as multicast
routes or servers) in the multicast VLAN. This allows the multicast
devices to update the multicast forwarding table to forward or not to
forward multicast traffic to the receiver ports.
Source Port Configure uplink ports that receive and send multicast data as
source ports. Subscribers cannot be directly connected to source
ports. All source ports on a switch are members of a single
multicast VLAN group.
Receive Port Configure a port as a receiver port if it is a subscriber port and thus should
receive multicast data. However, it won’t be able to receive the multicast data until it becomes
a member of the multicast group, either statically or by using IGMP join messages. Receiver
ports are untagged members of the multicast VLAN group.
（2）Group Configuration
This page sets specific static Group IP Address (es) for MVR.
Multicast VID multicast VLAN ID
Group IP Address static IP multicast address to be added
The lower part of this page lists all group IP addresses for the multicast VLAN.
