Assembly
Completing the forestay (R20 ā R40)
17

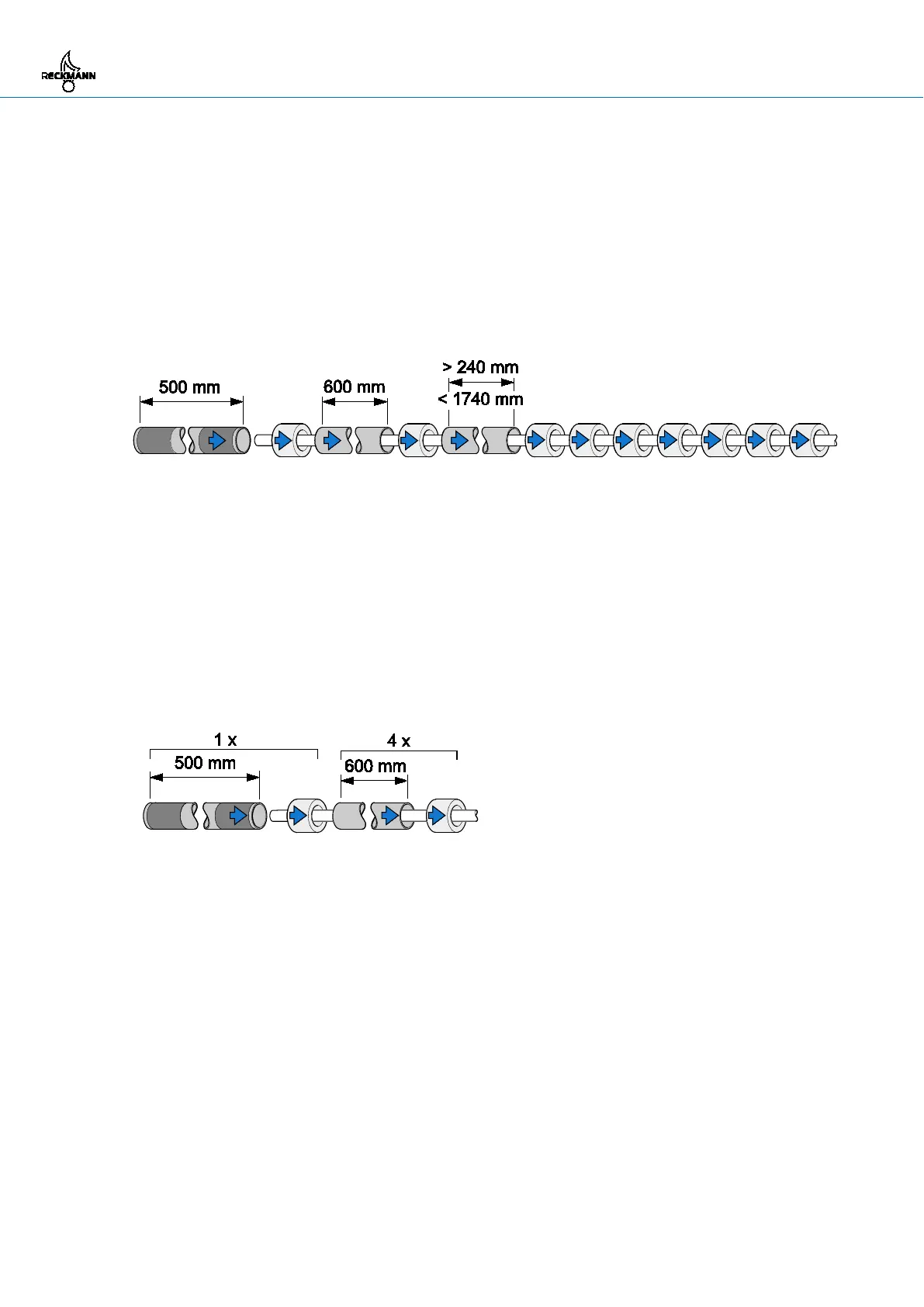

Sliding bushings and spacer hoses on for the top furling section
1. Slide on seven standard bushings.
2. Slide on the top spacer. The top spacer is between 240 mm and 1740 mm long.
3. Slide on a standard bushing.
4. Slide on a 600-mm-long spacer hose.
5. Slide on a standard bushing.
6. Slide on a 500-mm-long spacer hose with ends marked red.
The furling section connectors will later be located on the spacer hoses marked red.
Sliding on bushings and spacer hoses for 3000-mm-long standard furling sections
Carry out the following steps for each of the 3000-mm-long standard furling sections. The feeder
section is not included.
1. Slide on a standard bushing and a 600-mm-long spacer hose and repeat three more times.
2. Slide on a standard bushing.
3. Slide on a 500-mm-long spacer hose with ends marked red.
