Assembly
Completing the forestay (R20 ā R40)
18

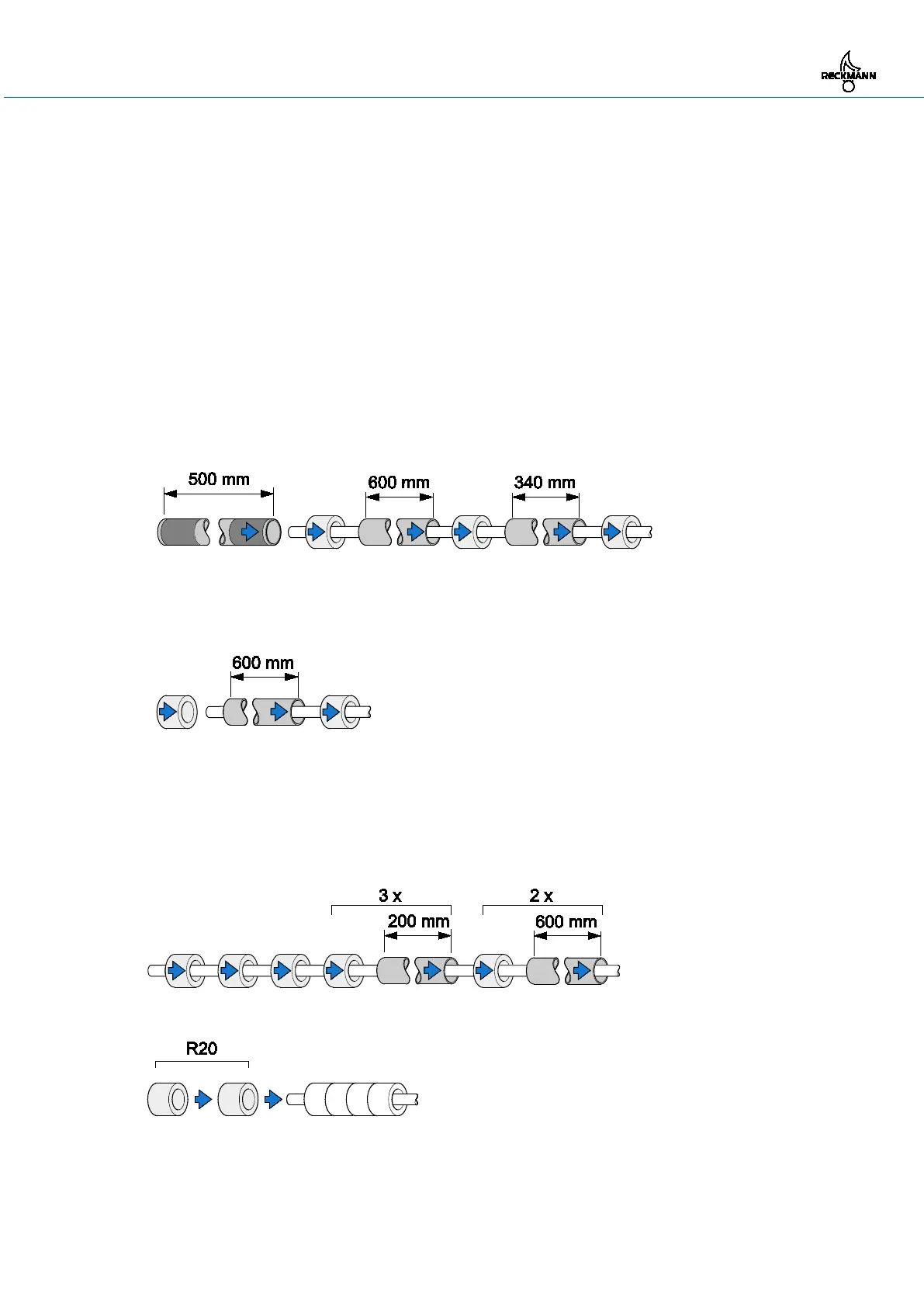

Sliding on bushings and spacer hoses for a 1500-mm-long standard furling section
The following steps are only necessary if a 1500-mm-long furling section is present. If no 1500-mm-
long furling section is present, continue with 'Sliding on bushings and spacer hoses for the feeder
section'.
1. Slide on a standard bushing.
2. Slide on a 340-mm-long spacer hose.
3. Slide on a standard bushing.
4. Slide on a 600-mm-long spacer hose.
5. Slide on a standard bushing.
6. Slide on a 500-mm-long spacer hose with ends marked red.
Sliding on bushings and spacer hoses for the feeder section
1. Slide on a standard bushing, a 600-mm-long spacer hose and another standard bushing.
If a foil reinforcement should be fitted, do not carry out the following steps.
2. Slide on a 600-mm-long spacer hose and a standard bushing and repeat one more time.
3. Slide on a 200-mm-long spacer hose and a standard bushing and repeat two more times.
4. Slide on three more standard bushings.
5. Only R20: slide on two additional standard bushings.
