RED DSMC OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0020_V5.2, REV-G | 85
SHORT-CUT TO INDUSTRY-STANDARD ANAMORPHIC FORMATS

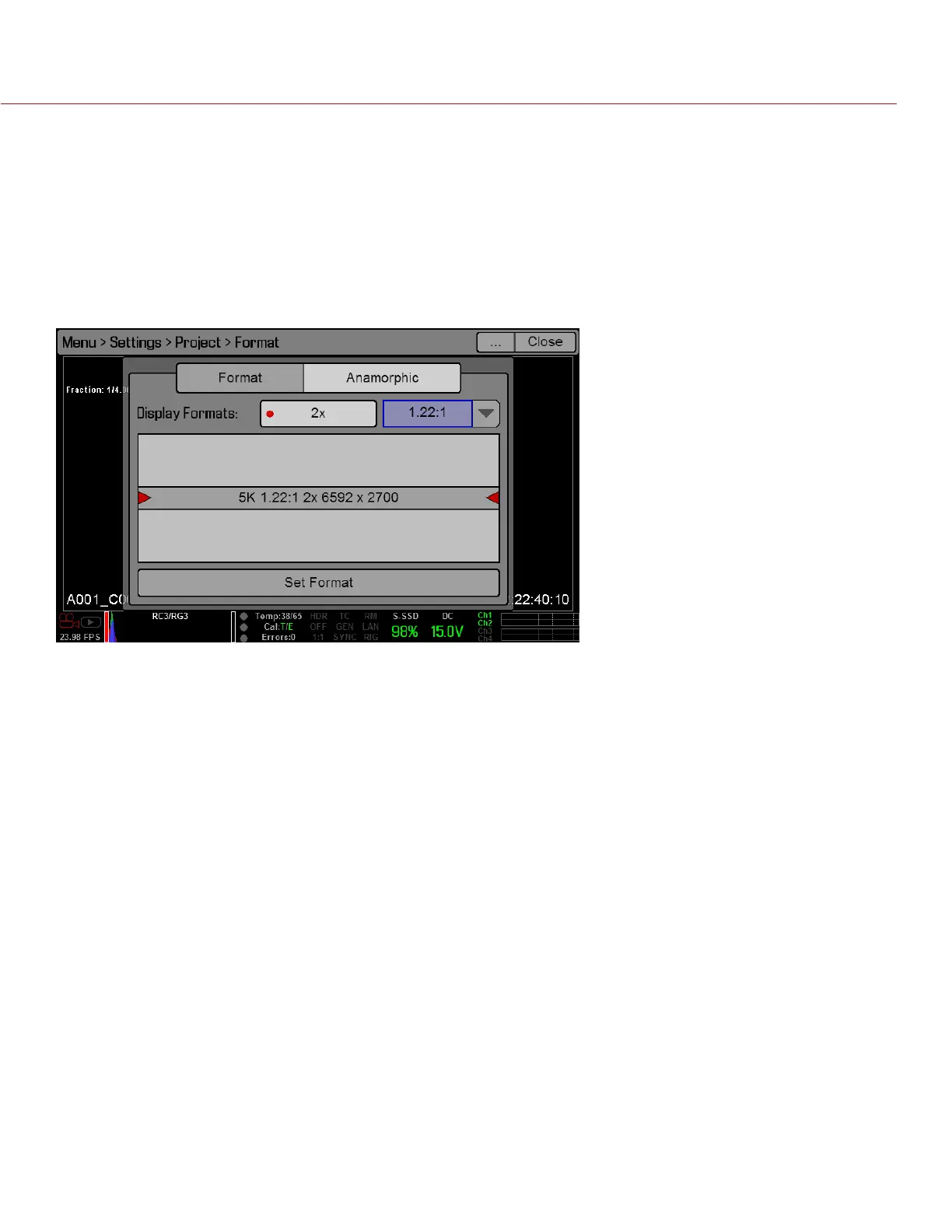

To quickly access industry-standard anamorphic formats, go to Menu > Settings > Project > Format > Anamorphic.
The Anamorphic tab is a short-cut to all of the industry-standard anamorphic formats, so that you can easily
select the most common anamorphic formats. The Anamorphic tab lists the following anamorphic formats:
EPIC DRAGON: Every format with a 5:4 or 4:3 aspect ratio and a 1.3x or 2x anamorphic setting.
SCARLET DRAGON: 5K 6:5 2x.
EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X: 5K 1.22:1 2x
NOTE: The Anamorphic tab only lists industry-standard anamorphic formats. To access all of the anamorphic
and non-anamorphic formats, go to Menu > Settings > Project > Format > Format.
LOOKAROUND
When Lookaround is enabled, the Frame Guide and recording area are scaled down on the display so that you
can see what images will enter the recording area.
To assign a Shading overlay to the Lookaround area (the area outside of the recording area), go to “General
Tab” on page 69.
Lookaround limits the available frame rates. Also, Lookaround is either very limited or not possible for high
resolutions (such as 5K Full Frame in EPIC MYSTERIUM-X and 6K Full Frame in EPIC DRAGON). At high
resolutions, the recording area on the display shows the full sensor area or full sensor height, so there is no
extra room for Lookaround.
UHD
The UHD menu is only accessible when a RED 4K Broadcast Module is installed.
AUDIO
The Audio menu lets you configure the audio subsystem. For more information, go to “Record and Monitor
Audio” on page 126.
RECORDING
The Recording menu includes: Mode, Frame Processing, Pre-Record, and Indicator.
MODE
You can select the following recording modes: Continuous Record, Internal Timelapse Timer, Frame Trigger,
Speed Ramp Mode, and External Record Only.
