RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 204

CTRL (RS232 CONTROL)

The 4-pin 00B LEMO CTRL connector supports RS232 remote control for 3D camera communication and third-

party metadata ingest applications. For more information, go to “BRAIN GPIO” on page 107.

The General Purpose Out (GPO) tally presents 3.3 V at a maximum of 0.04 A between pins 1 and 3. When used

as a record tally, the rising edge of the pulse indicates start of record, falling edge represents end of record.

For more information about controlling the camera via RS232, download the REDLINK

SDK, available at www.

red.com/developers.

4-PIN 00B LEMO CTRL CONNECTOR

PIN SIGNAL DESCRIPTION DIRECTION

1 GROUND Common ground N/A

2 232 RX RS232 RX In

3 SS/GPO Shutter sync/general purpose output Out

4 232 TX RS232 TX Out

NOTE: Mating connector is FGG.00.304.CLAD27Z.

COMPATIBLE CABLES

 790-0154: 3BNC-to-00 LEMO Sync Cable

 790-0187: 4-Pin 00 LEMO-to-Flying Lead

 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC)

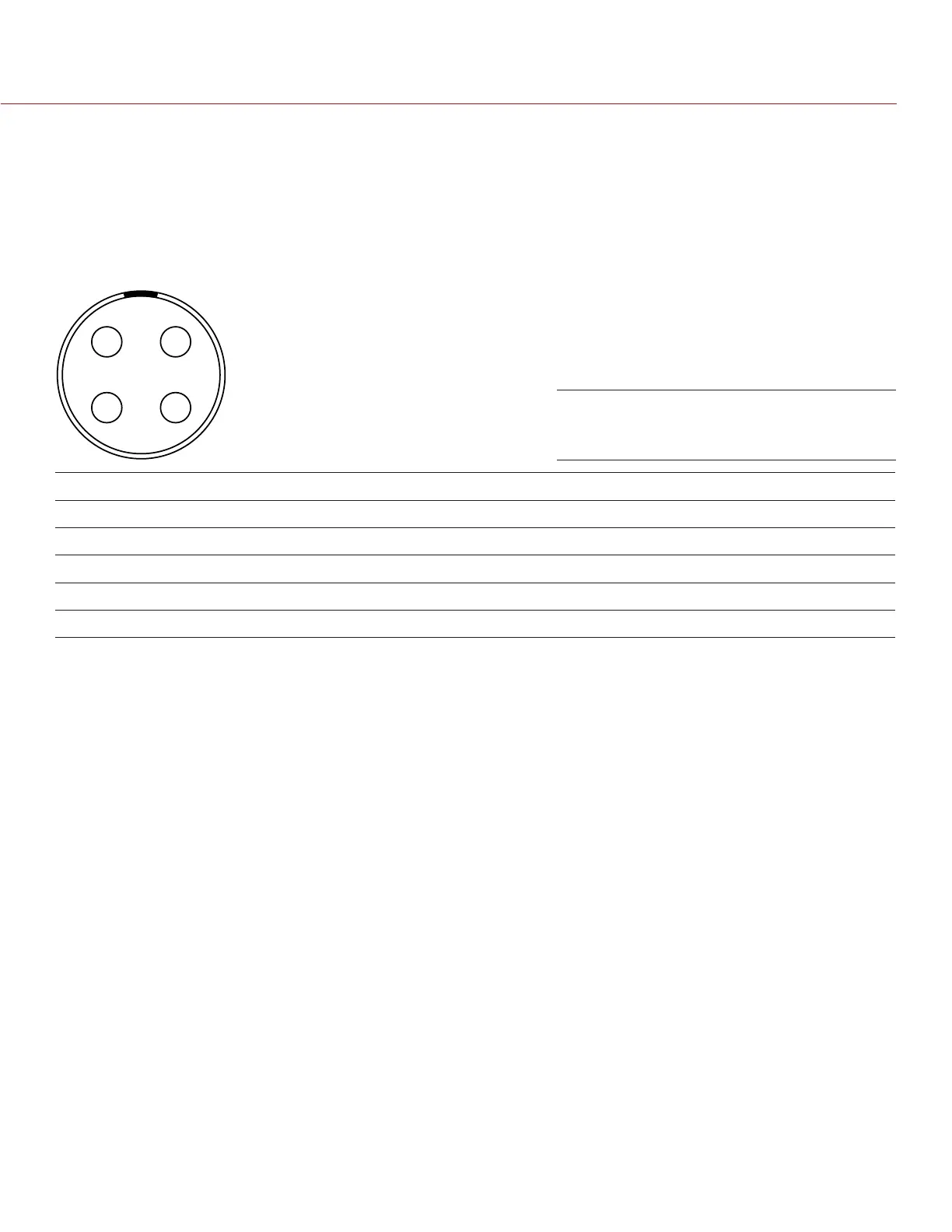

Front Face of the CTRL (RS232)

Connector (Looking at the DSMC)
