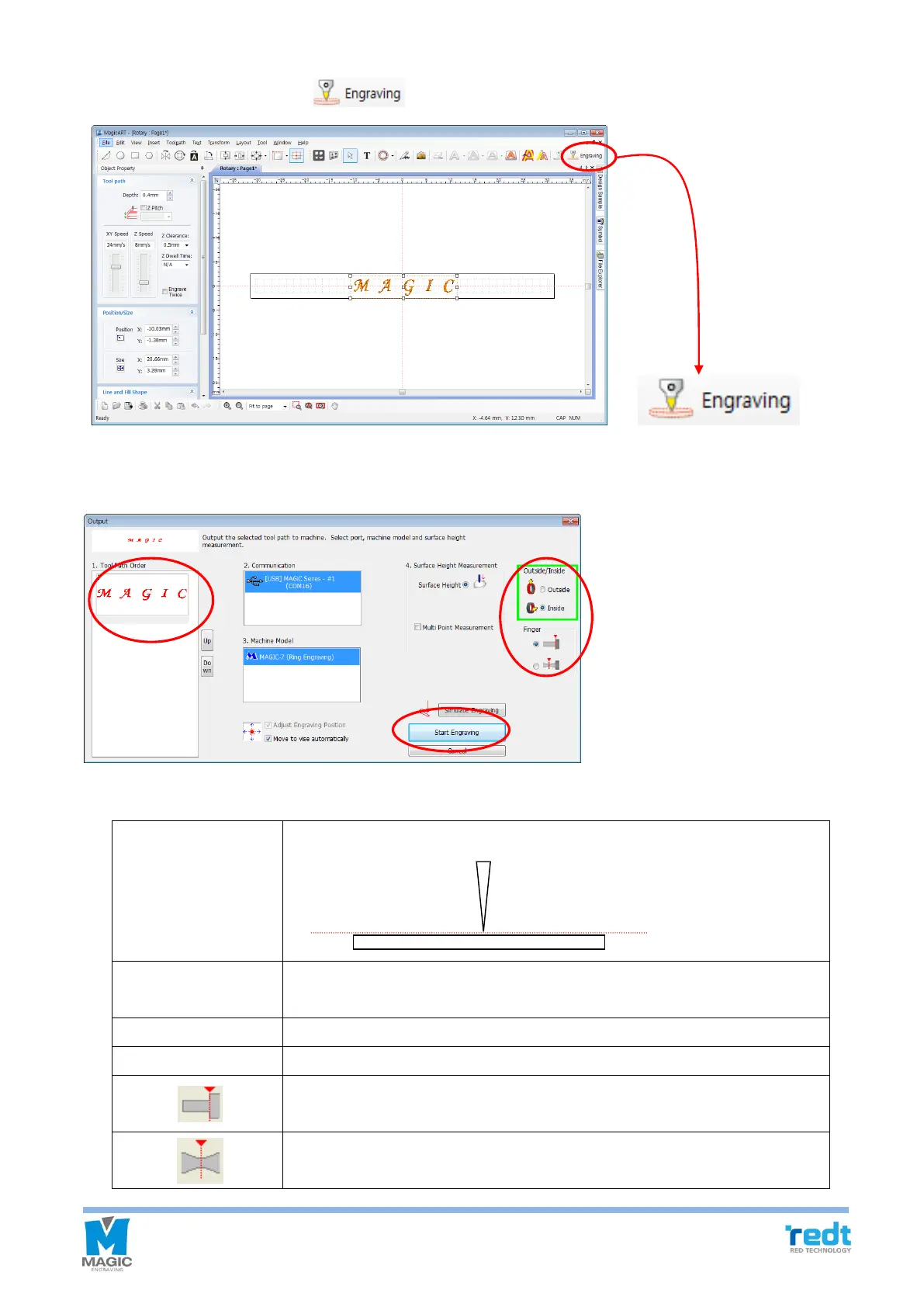

9. After selecting a tool path, click .
10. Once “Transfer NC data” window appears, specify Communication port and rotation clamp option. And then,
click “Start Engraving” button.
Surface Height
Measure material height.
Multi point
Measurement
Measure material height by dividing the whole material into several parts(up
to 5 times)
Outside
Engrave on the ring’s outer diameter.
Inside
Engrave on the ring’s inner diameter.
Set the material to the flat chuck finger.
Set the material to the round chuck finger.
