Ricoh Aficio MP 7001 SP Service Manual

Installation: G3 Interface Unit Type 9001 (D418-06)
D418 10 SM
One G3 Interface Unit Installation

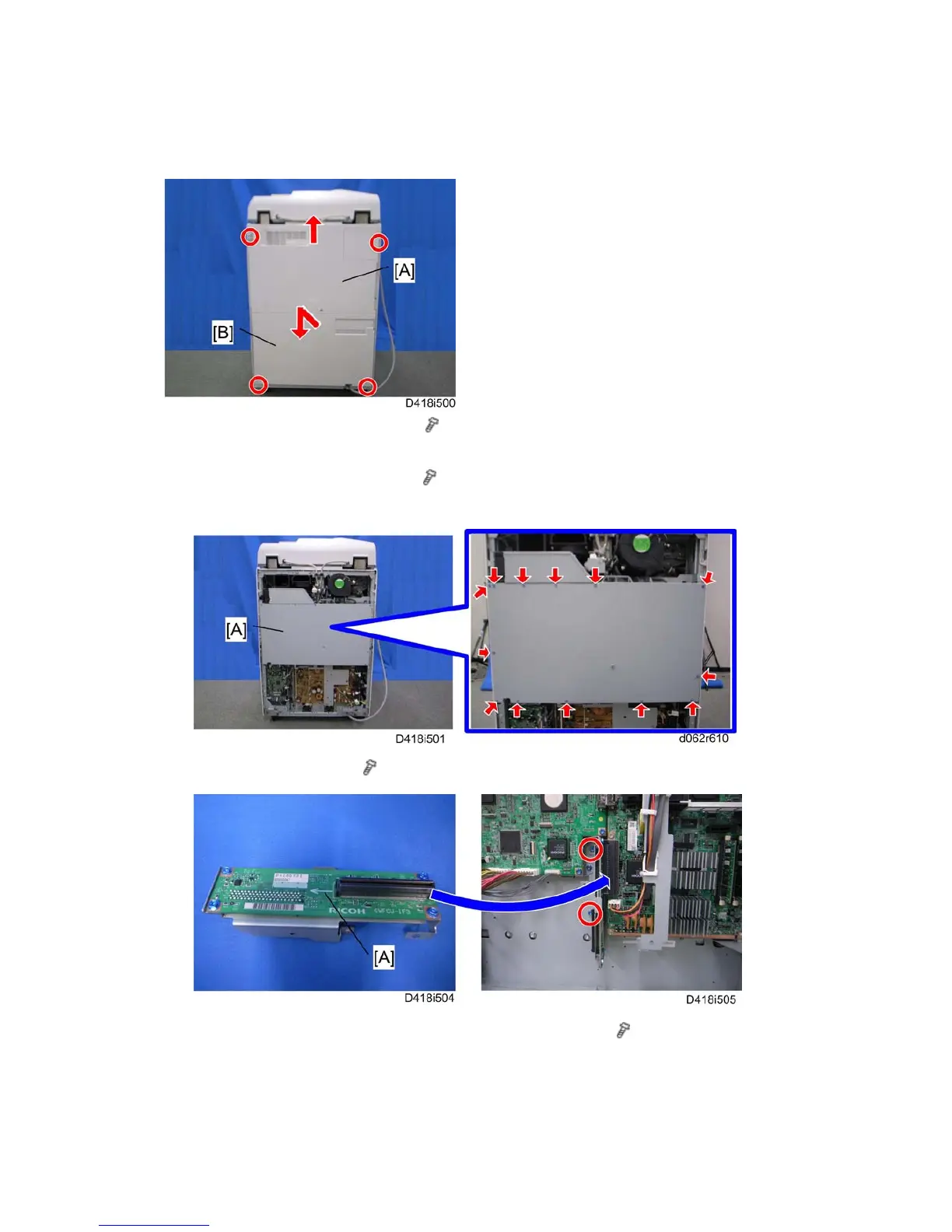

1. Remove the rear upper cover [A] (
x 2).
 Slide the rear upper cover up, and then remove it.
2. Remove the rear lower cover [B] (
x 2).
 First slide up the rear lower cover, then slide it down.
3. Controller box cover [A] (
x 13).
4. Attach the interface board [A] to the controller board securely (
x 2).
