Installation: G3 Interface Unit Type 9001 (D418-06)
SM 15 D418
Fax Option
Type 9001
D418

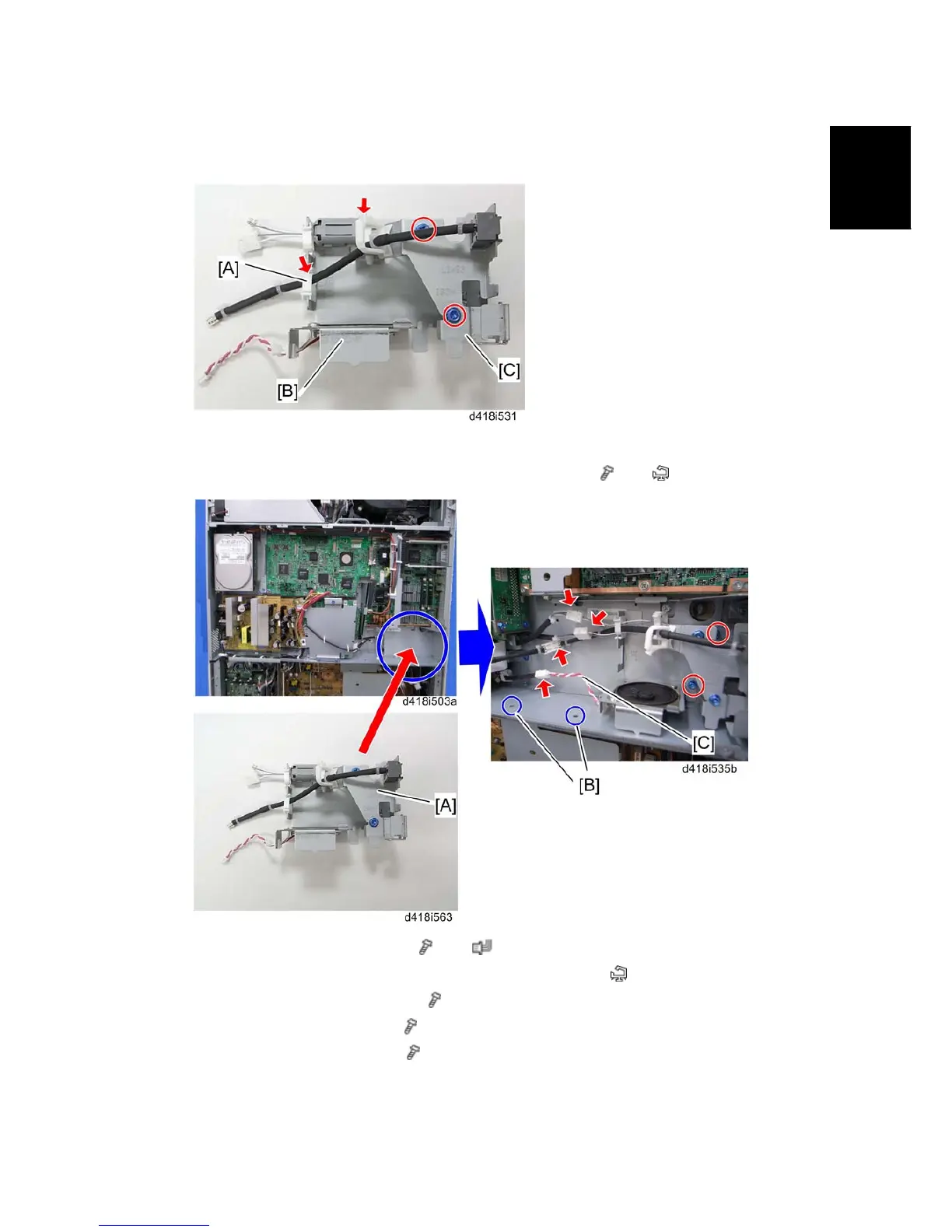

13. Attach the modular jack [A] to the G3 connector bracket [B].
14. Attach the edge saddle clamp [A] to the speaker unit [B].
15. Attach the G3 connector bracket [C] to the speaker unit [B] (
x 2, x 2).
16. Install the speaker assembly [A] ( x 2, x 4).
17. Attach two clamps at [B] and fasten the speaker harness [C] (
x 2).
18. Reattach the controller box cover (
x 13).
19. Reattach the rear lower cover (
x 2).
20. Reattach the rear upper cover (
x 2).
