Installation: G3 Interface Unit Type 9001 (D418-06)
D418 16 SM
Two G3 Interface Units Installation

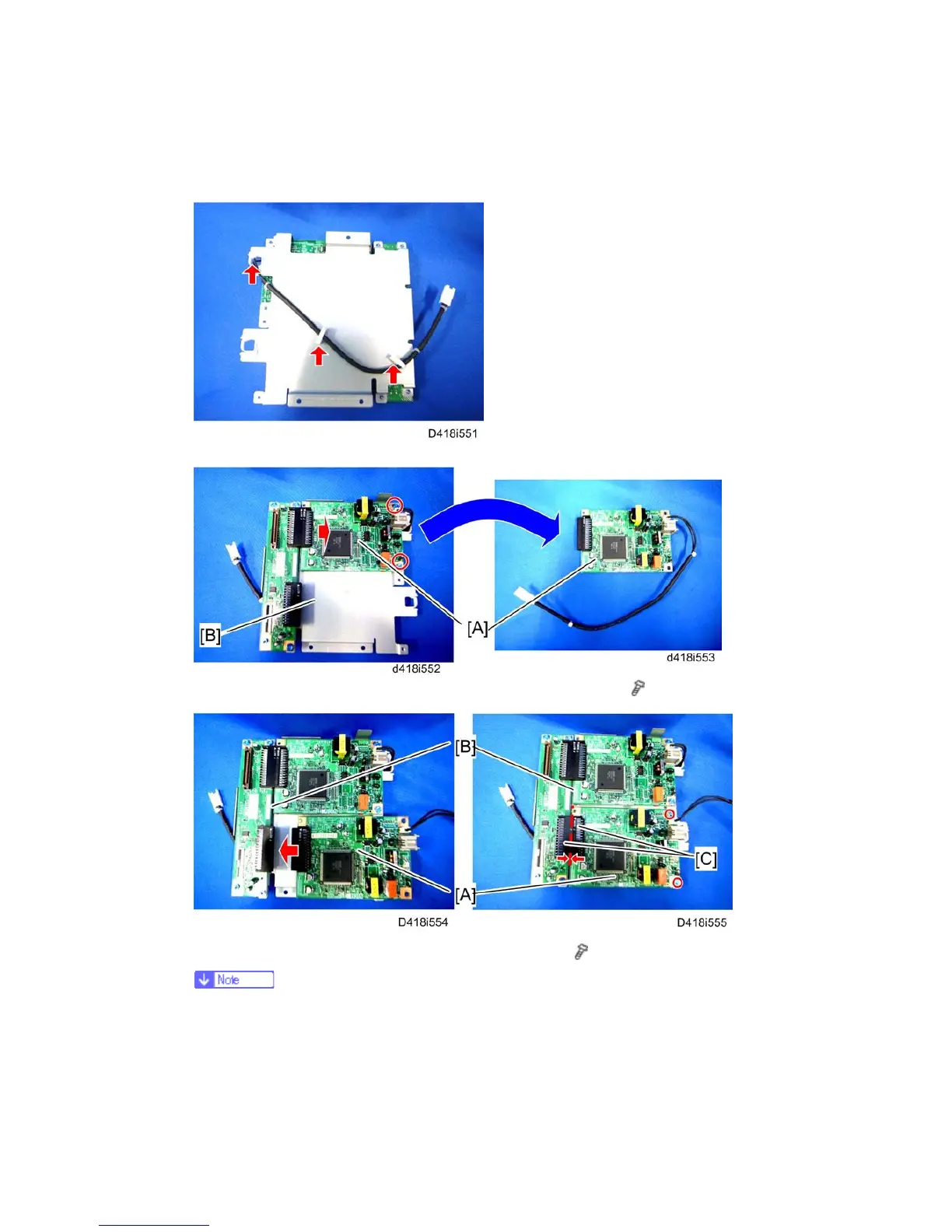

1. Do steps from 1 to 5 of "One G3 Interface Unit Installation".
2. Release three clamps on the second G3 unit.
3. Remove the G3 board [A] from the second G3 interface unit [B] ( x 2).
4. Attach the G3 board [A] to the first G3 interface unit [B] (
x 2)
 Make sure that the board-to-board connectors [C] are securely connected.
