Installation: G3 Interface Unit Type 9001 (D418-06)
SM 17 D418
Fax Option
Type 9001
D418

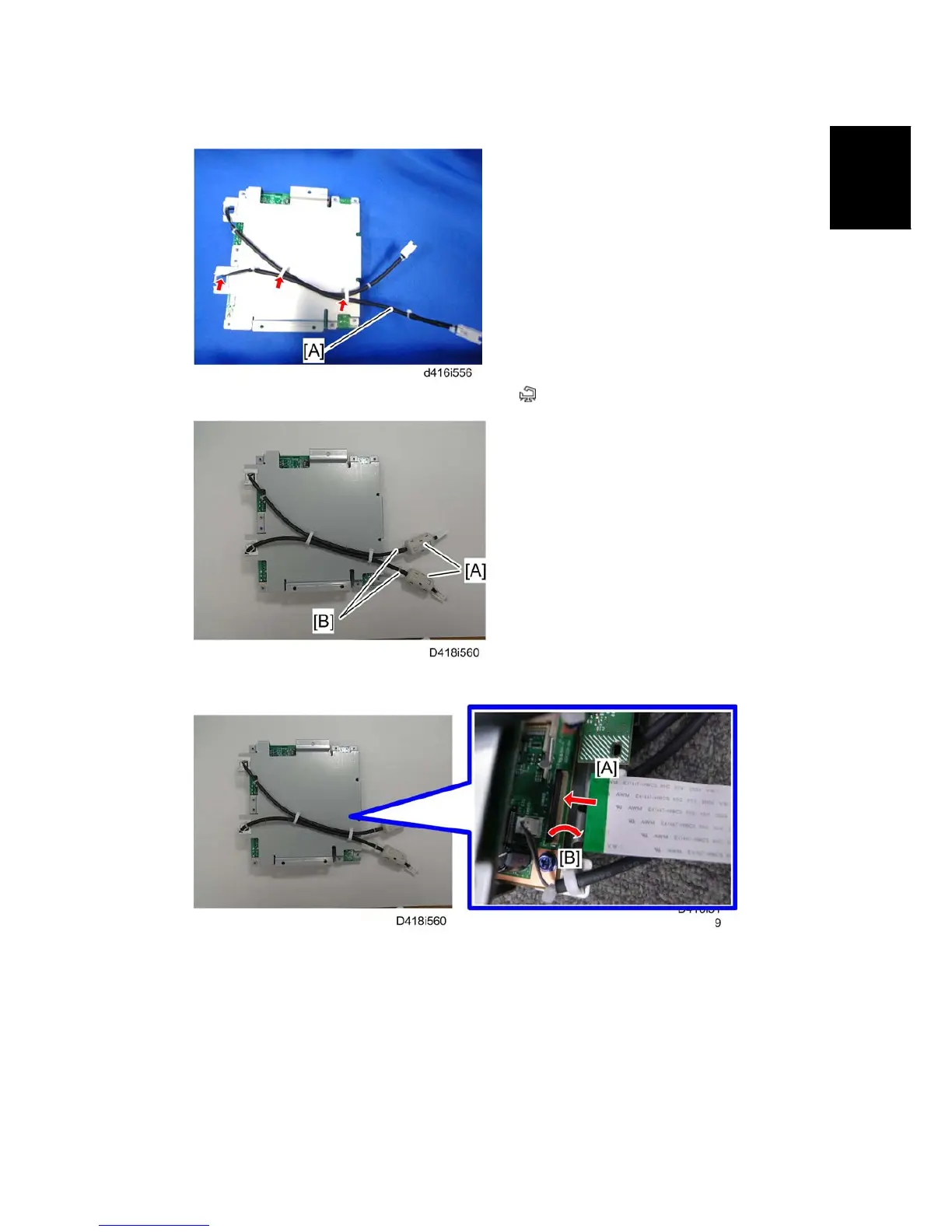

5. Clamp the cable [A] from the second G3 board (
x 3).
6. Attach the ferrite cores (RFC-5) [A] to each cable [B].
7. Connect the FFC (Flexible Flat Cable) to the FCU.
[A]: Insert the FFC as shown above.
[B]: Lock the stopper.
