Electrical Components: 1st Stopper

SM 21 D454

Multi-Folding

Unit FD5000

D454

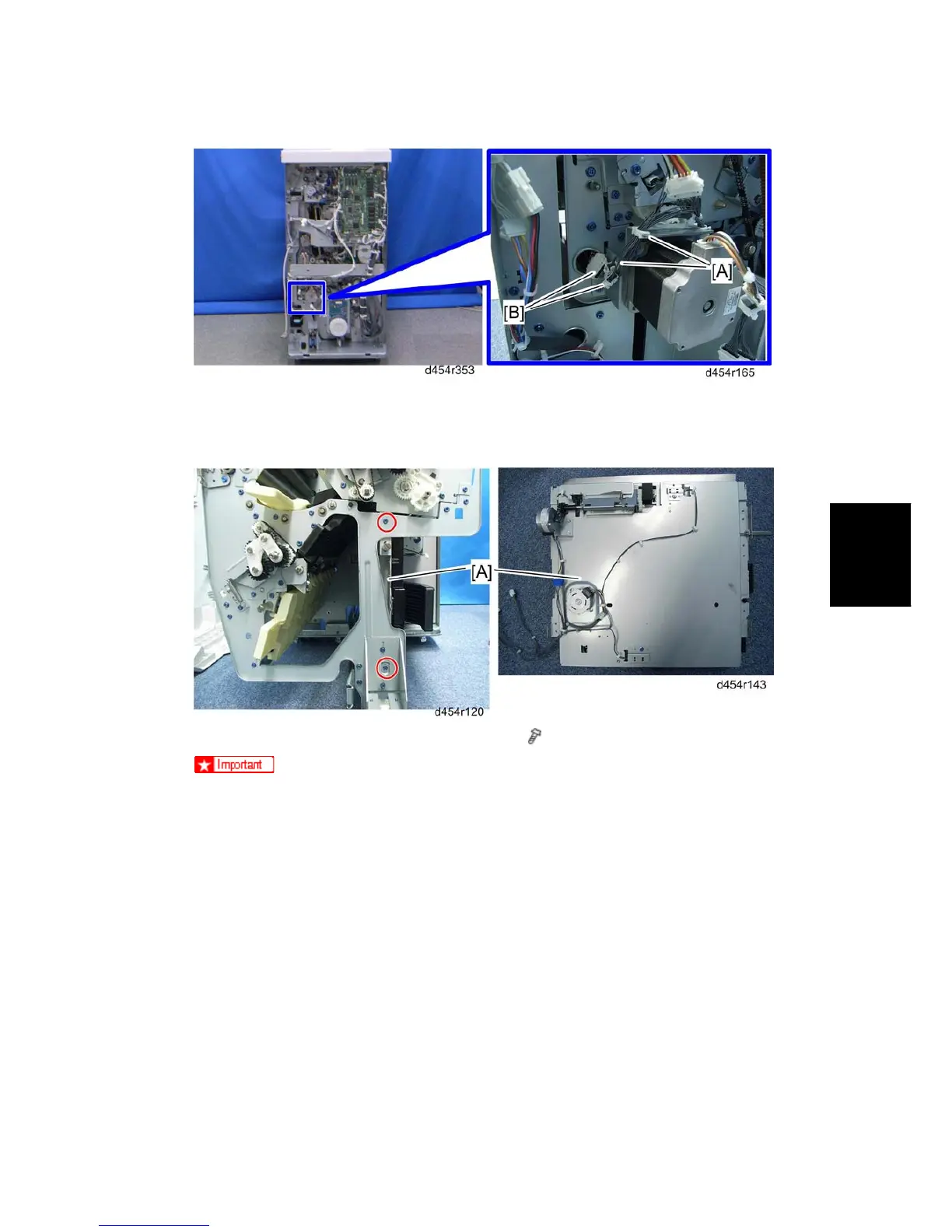

9. Release two clamps [A].

10. Disconnect two connectors [B].

11. Pull out the folding unit drawer ( p.6).

12. Hold the 1st stopper unit [A], and then remove it (

x 2).

 The 1st stopper unit cannot hang the folding unit drawer without the two screws.

If you remove the 1st stopper unit without any support, the 1st stopper unit can

fall and be broken.

1.3.8 POSITIONING ROLLER MOTOR

1. 1st stopper unit ( p.19)
