Replacement and Adjustment
D454 50 SM

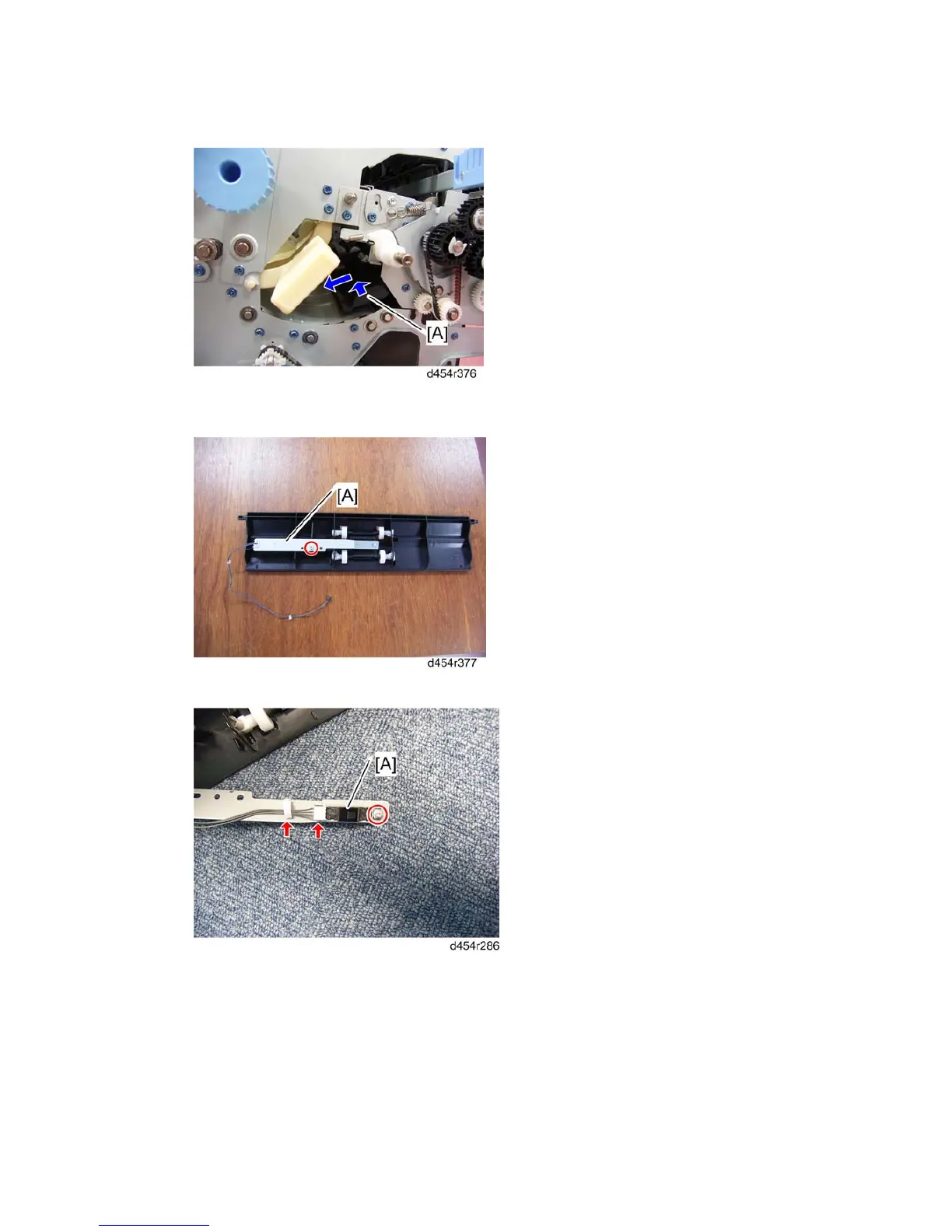

6. Push the bypass entrance guide plate [A] to the rear, then slide it to the left, and remove
it.
7. Bypass entrance paper sensor bracket [A] ( x 1)
8. Bypass entrance paper sensor [A] (= x 1, x 1, x 1)
