Ricoh Aficio MP 7001 SP Service Manual

Electrical Components: Main 2
SM 51 D454
Multi-Folding
Unit FD5000
D454
Reinstalling the bypass entrance paper sensor

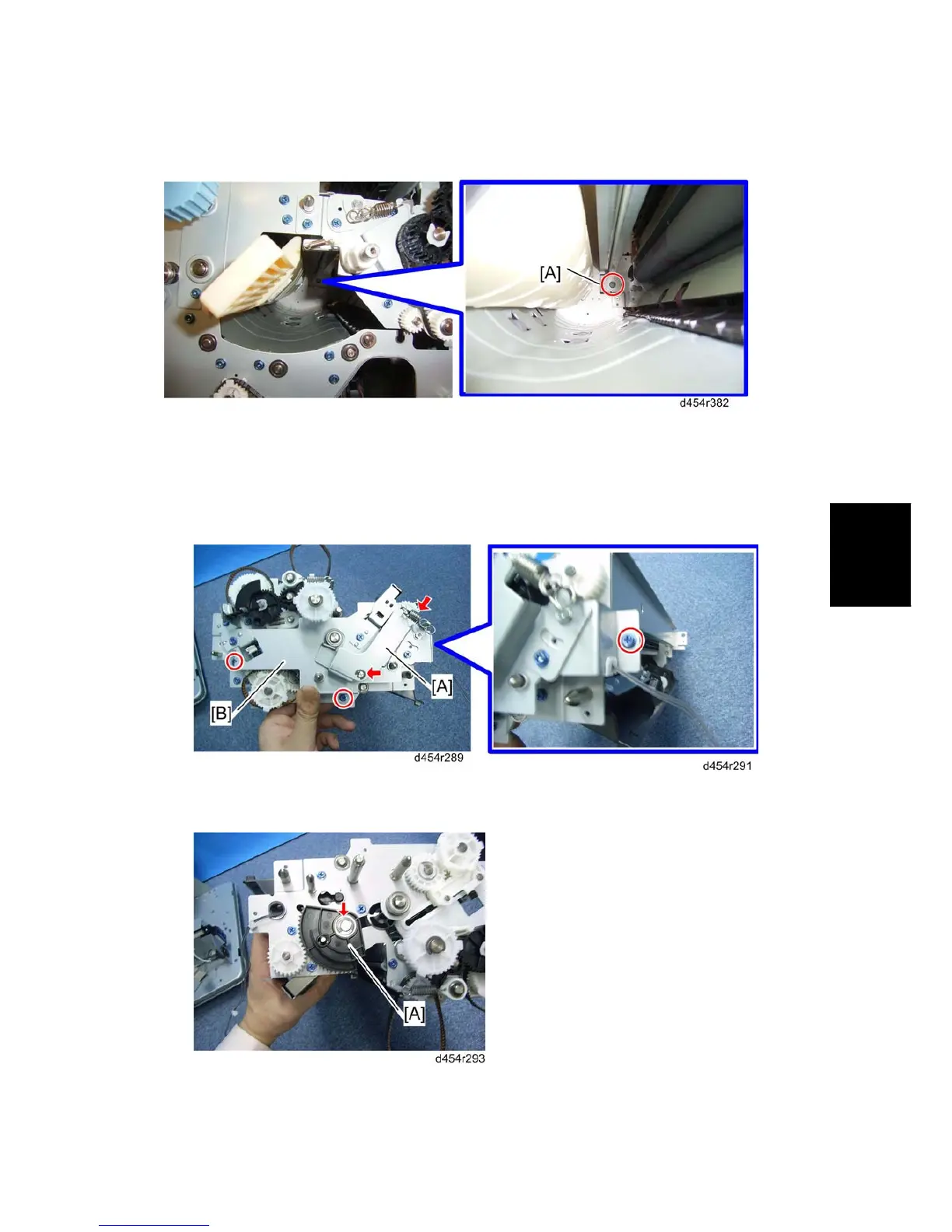

Put the harness of the bypass entrance paper sensor through the hole [A] in the rear frame
of the drawer.
1.7.2 FIRST/ SECOND/ THIRD FOLD ROLLER
1. First fold unit ( p.45)
2. Tension bracket [A] (spring x 1,  x 1)
3. Rear bracket [B] ( x 3)
4. Remove the gear [A] ( x 1)
