Connecting the Machine
43
2
Important
❒ Use shielded Ethernet cable. Unshielded cables create electromagnetic inter-
ference that could cause malfunctions.
❒ The Ethernet cable is not supplied with this machine. Select your cable ac-
cording to the network environment.

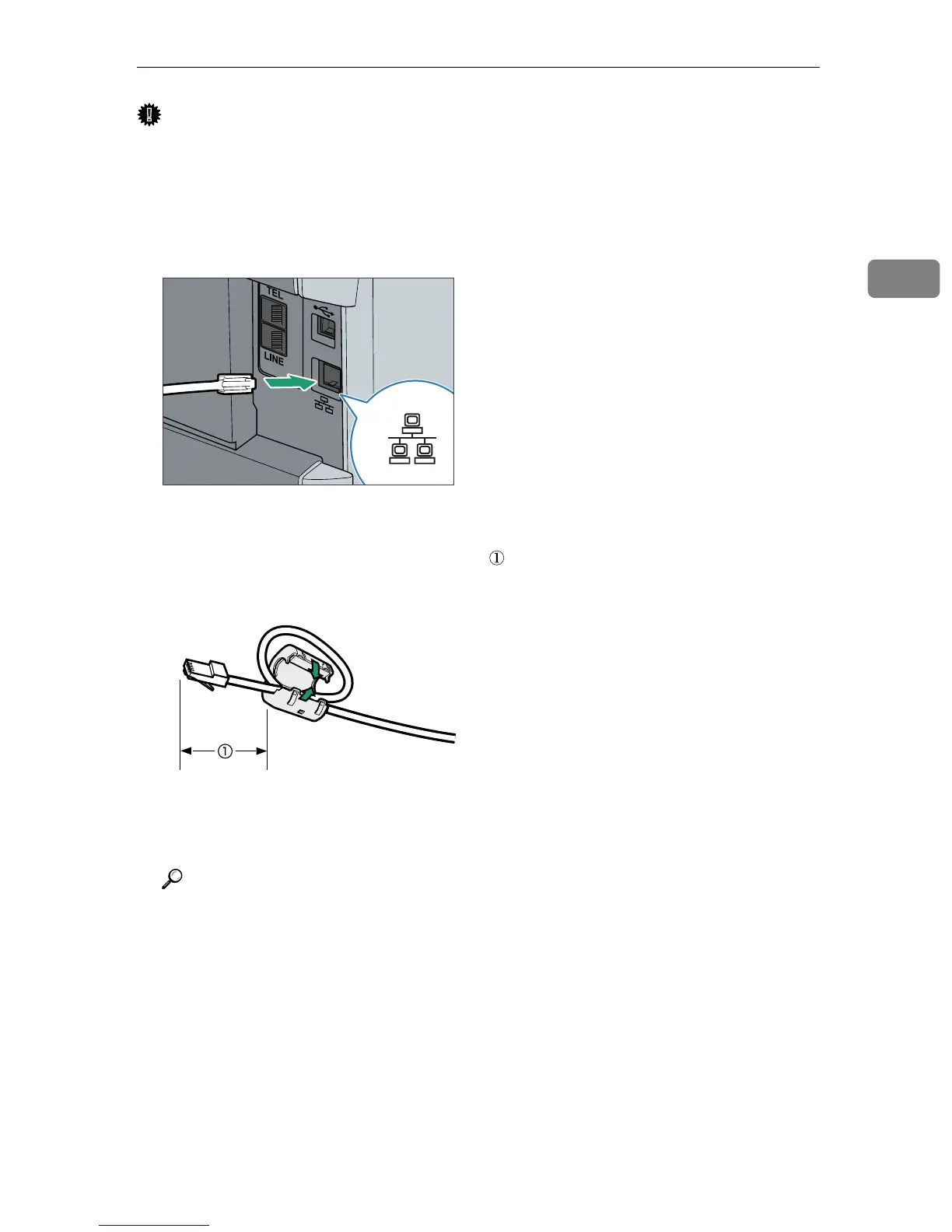

A Connect the Ethernet cable to the Ethernet port.
B Attach the ferrite core supplied with this machine at the other end of the
Ethernet cable about 5 cm (2 inches) ( ) from the connector, making a loop
as shown.
C Connect the cable to the network (e.g., a network hub).
Reference
For details about network environment settings, see p.46 “Configuring the
IP Address Settings”.
For details about installing printer drivers for network connection, see the
instructions provided on the driver CD-ROM.
BSP047S
BBM011S
