2. DRUM
2.1 DRUM CONNECTION MECHANISM

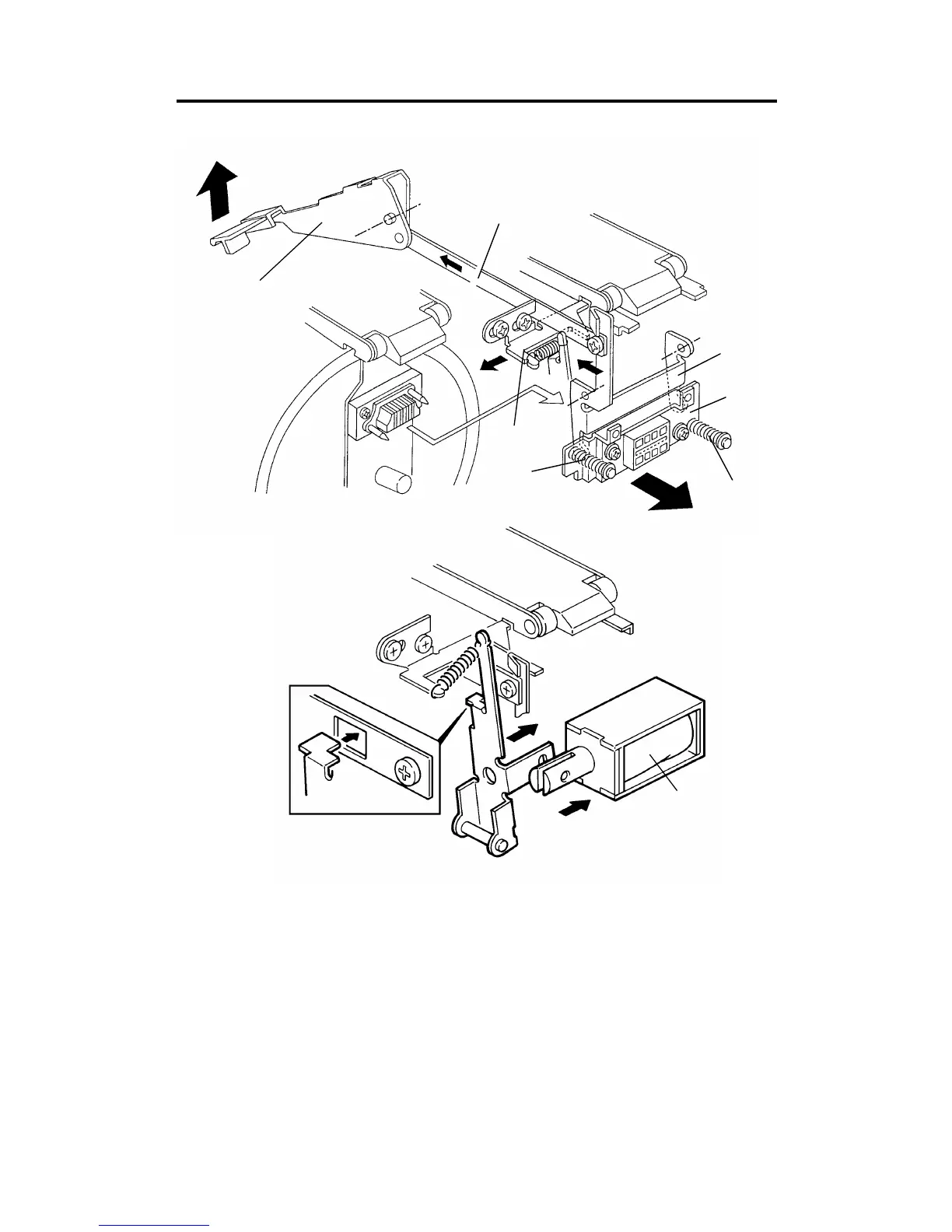

When the drum release lever [A] in front of the machine is raised, the
connector [B] is pushed away from the drum by the bracket [C] through the
link [D] to be disconnected. The connector moves only horizontally due to
the guidance of the shafts [E]. The bracket [C] also pushes the drum lock
lever [F] to release the drum lock allowing the drum to be removed.
While the drum is out of home position, the drum lock solenoid [G] is
energized and the stopper [H] locks the link [D] not to be pulled. The
solenoid is de-energized when the drum stops at the home position (1st
drum home position sensor is actuated).
[A]
[D]
[C]
[B]
[E]
[E]
[F]
[G]
[D]
[H]
SM 2-6 C216
