2. OPTICS

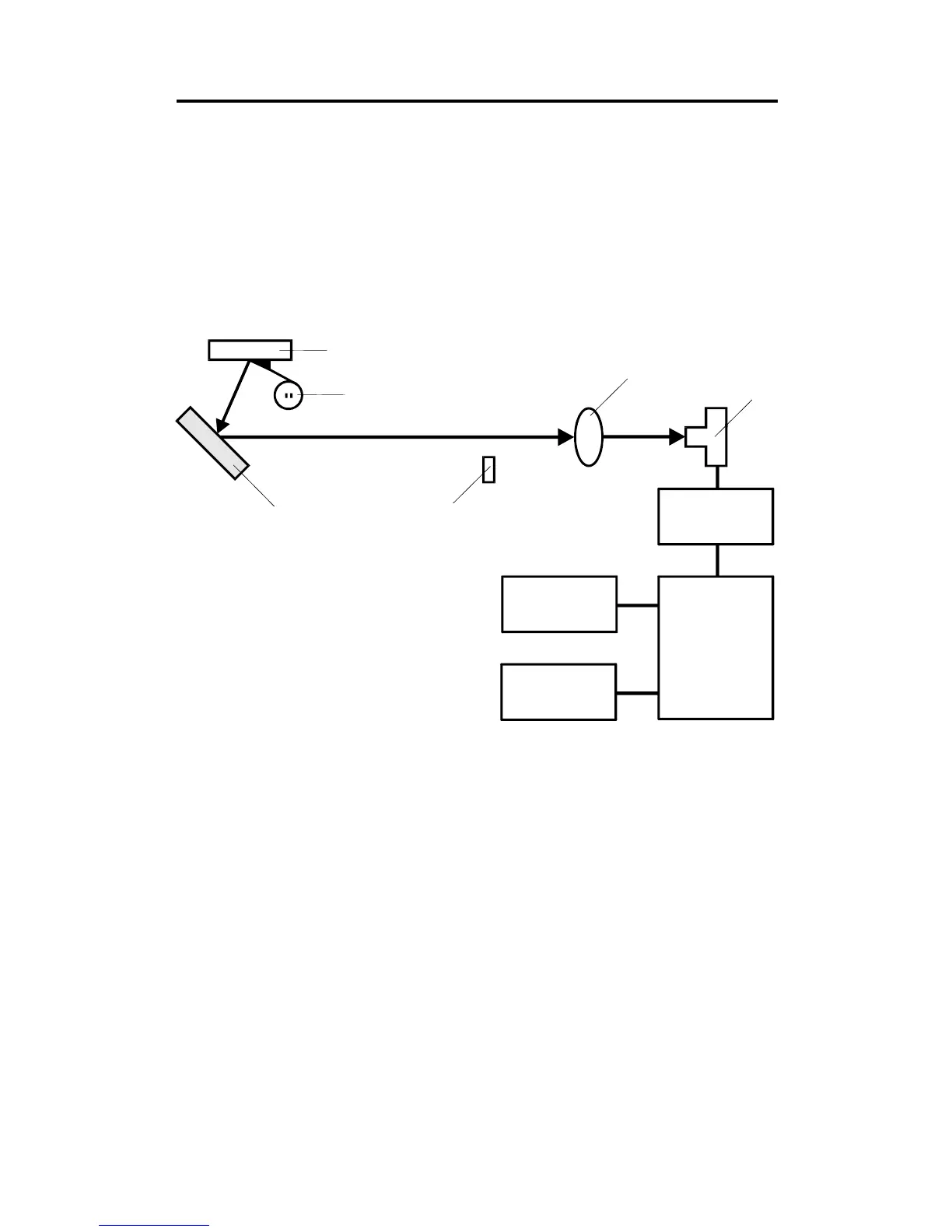

2.1 OVERALL
The CCD [A] which corresponds to a 300 dpi pixel density is used in the
VT2200.
The light reflected from the original is sent to the CCD through a lens.
The CCD changes the reflected light into an analog electrical signal which
will then be converted into a 4-bit digital data in the A/D conversion PCB will
then convert. The main control PCB changes the 4-bit data into a 1-bit data
to drive the thermal head.
A/D Conversion
Thermal Head
Operation Panel
Main
Control
PCB
PCB
[C]: Shading Plate
[D]: Mirror
[E]: Exposure Glass
[F]: Fluorescent Lamp
[C]
[A]
[B]
[F]
[E]
[D]
SM 2-3 C224
