1. MASTER EJECT SECTION

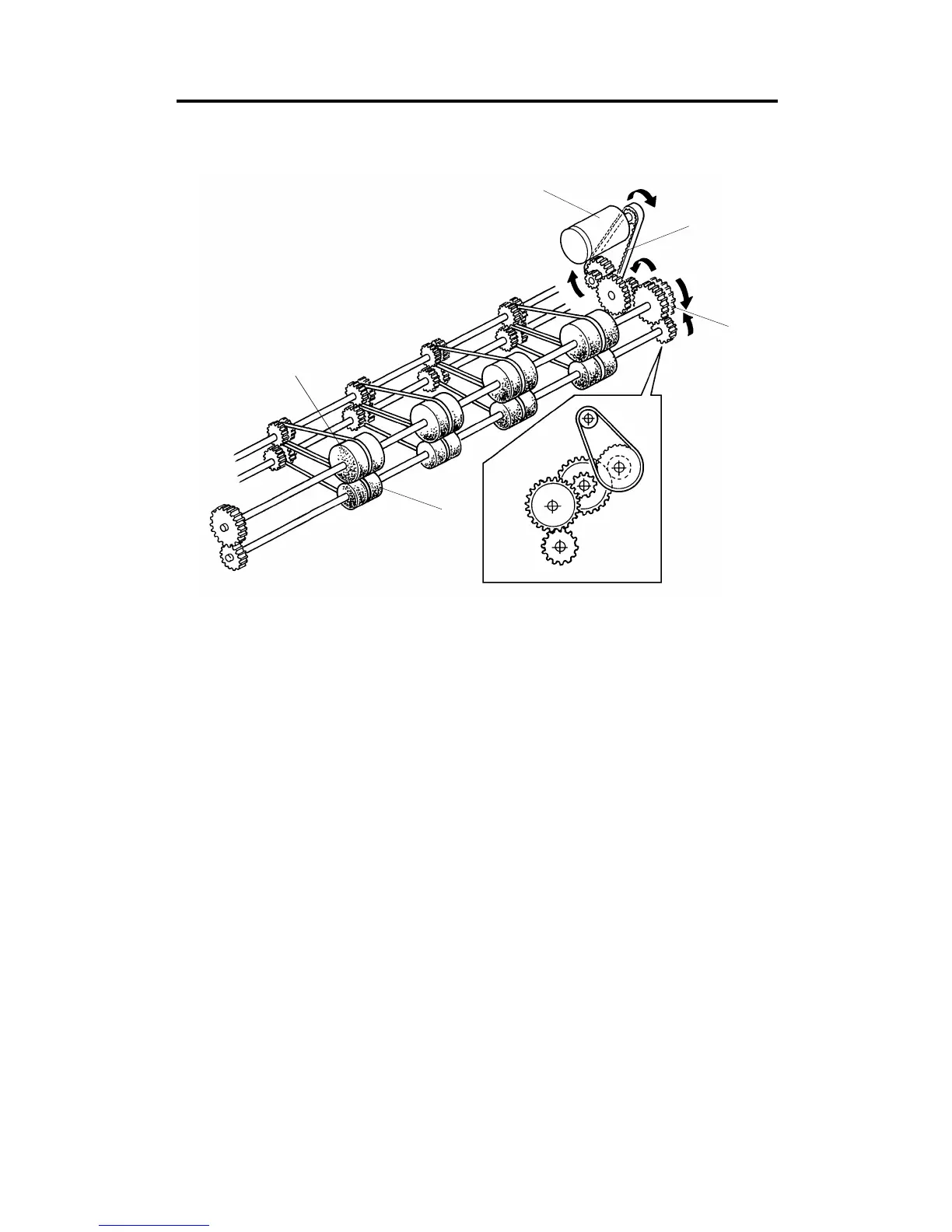

1.1 MASTER EJECT ROLLER DRIVE MECHANISM
The DC motor located in the rear of the machine will drive the master eject
rollers [B] and [E] through the timing belt [C] and gear train [D].
When the master eject solenoid (not shown) is energized, the lower master
eject rollers [E] will be pressed against the drum surface to pick up the curled
trailing edge of the used master.
The curled trailing edge of the used master will then pass between the upper
and lower master eject roller and will be transported into the master eject box.
[A]
[B]
[C]
[D]
[E]
SM 2-1 C224
