3. PAPER DELIVERY
3.1 EXIT PAWL AIR PUMP MECHANISM

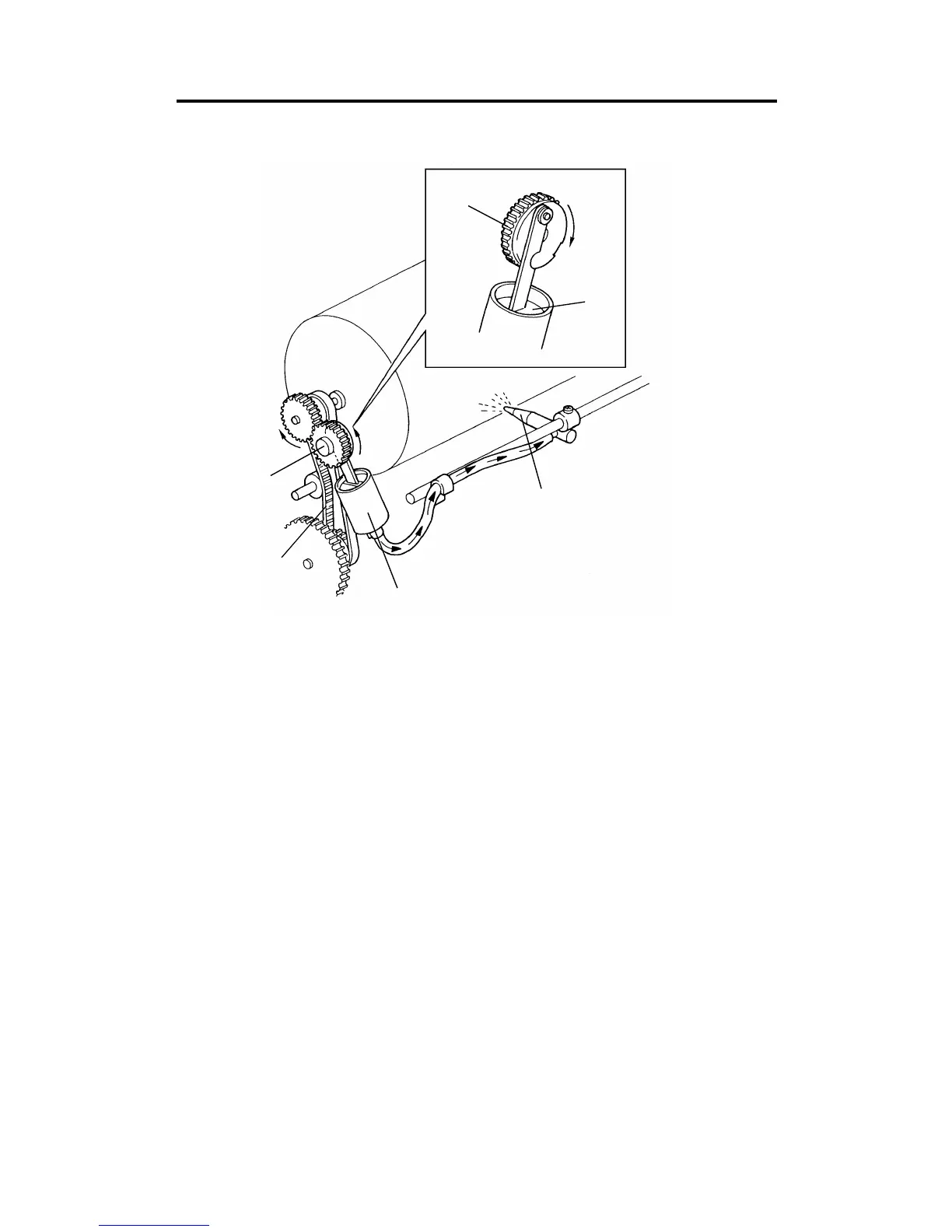

The main motor drive is transmitted to the pump gear [A] through gears and
a timing belt [B]. The gear [A] rotates and drives the piston [C] back and
forth.
The piston moves forward and pushes a jet of air out through the nozzle [D].
This jet of air helps separating the paper from the drum.
