4. PAPER DELIVERY
4.1 EXIT PAWL AIR PUMP MECHANISM

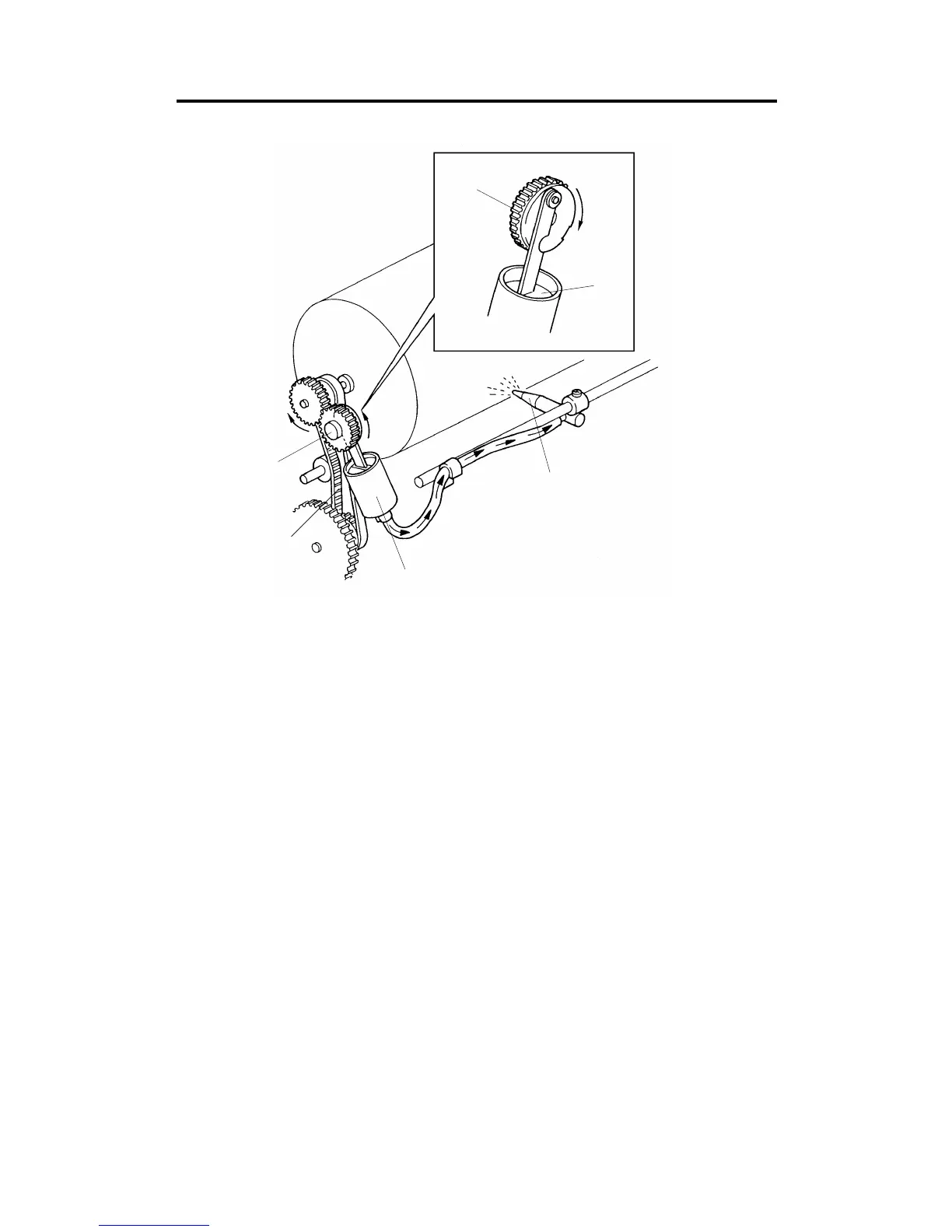

The main motor drive is transmitted to the pump gear [A] through gears and
a timing belt [B]. The gear [A] will rotate and drive the piston in the air pump
[C] back and forth.
When the piston moves forward, it will pushe a jet of air out through the
nozzle [D]. This jet of air will help to separate the paper from the drum.
[A]
[C]
[D]
[A]
[B]
[C]
