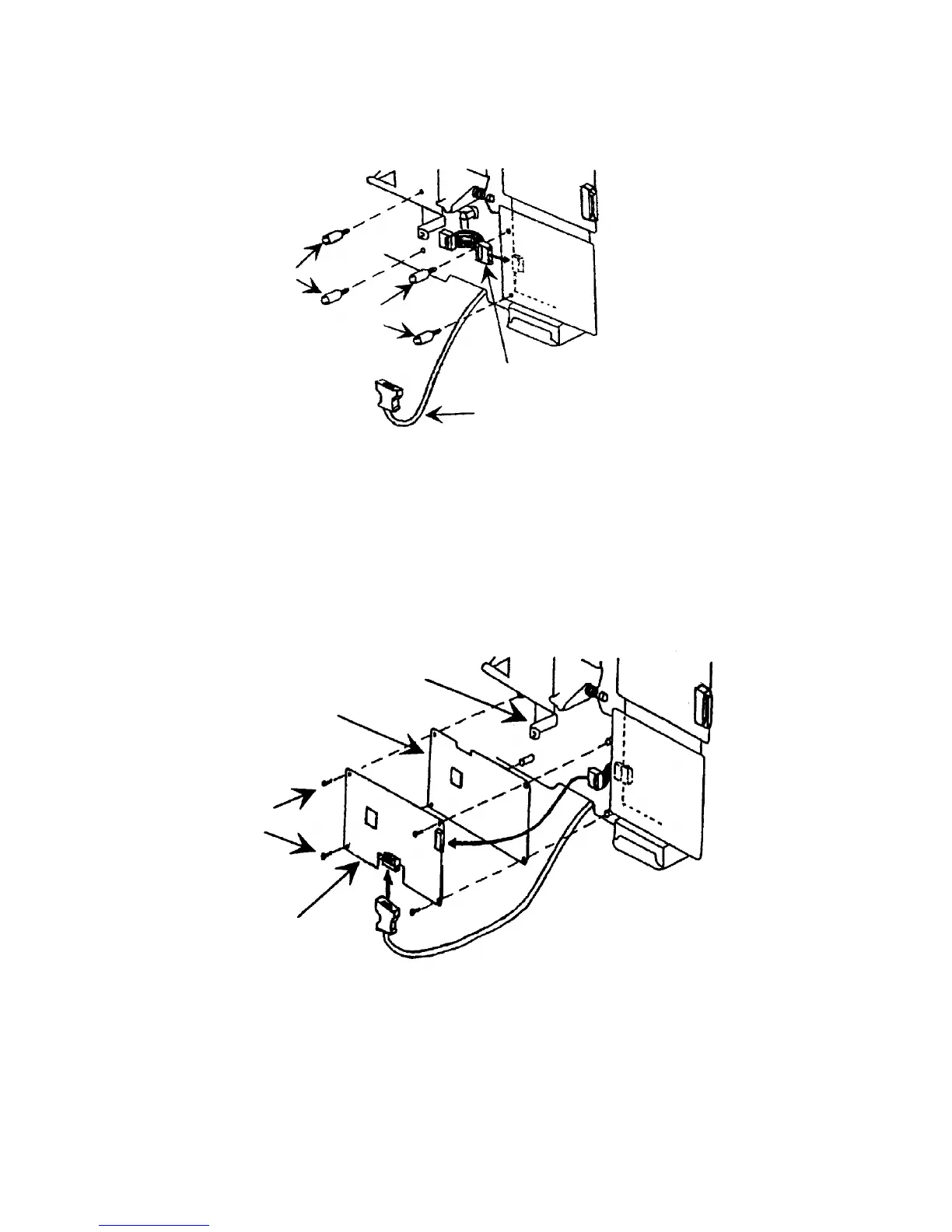

FIGURE 1:
FRONT VIEW OF FRAME WITH MOUNTING HARDWARE
5. Mount the (4) short Studs [B] into the chassis.
6. Attach one end of the short I/O Ribbon Cable [C] to the connector,
CN406 on the Image Processing Board [E]. Refer to figure 2.
FIGURE 2:
FRONT VIEW OF FRAME WITH INTERFACE PCB
Interface Harness
[G]
Ribbon Cable
[C]
Studs
[B]
Studs
[B]
Main
Control
PCB
[A]
CN405
Front Cover Blanket
[F]
Plastic Sheet
[D]
Video Interface PCB
[E]
M3 x 6 Screws
CN102
CN101
FSM 6-5 VT2105
