Punch Unit (B807)
SM 2-56 D017/D018/D019/D020/D084/D085
2.14 PUNCH UNIT (B807)
2.14.1 COMPONENT CHECK

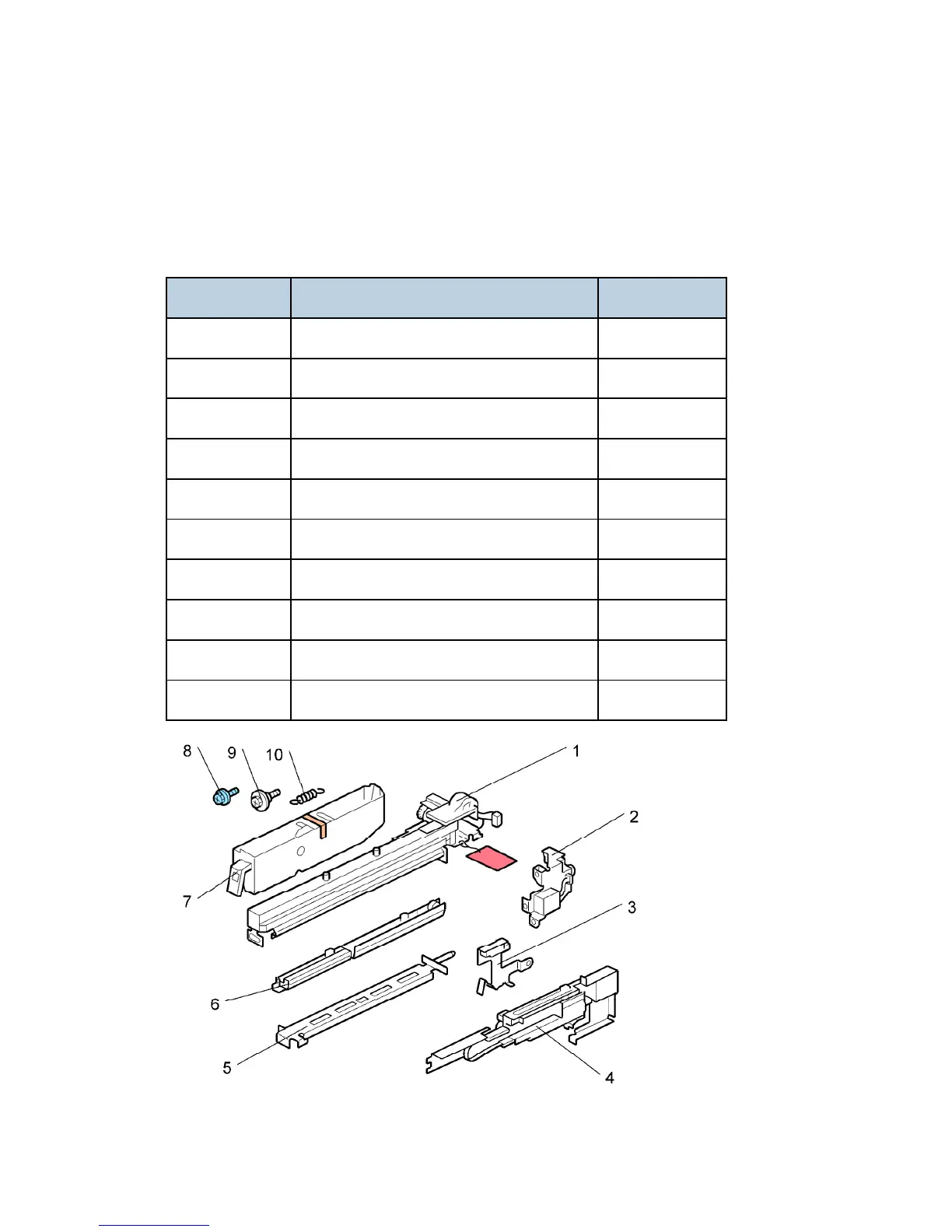

Check the quantity and condition of the components against the following list.
No. Description Q’ty
1 Punch Unit 1
2 Punch Drive Motor 1
3 Hopper Full Sensor Arm 1
4 Sub-scan Registration Sensor Unit 1
5 Punch Unit Stay 1
6 Sub-scan Registration Sensor Guide 1
7 Hopper 1
8 Screw 1
9 Step Screw 1
10 Spring 1
