Punch Unit (B807)
D017/D018/D019/D020/D084/D085 2-57 SM
Installation
2.14.2 INSTALLATION
 Unplug the main machine power cord before starting the following procedure. If the
1000-sheet booklet finisher has been installed, disconnect it and pull it away from
the machine.
1. If the finisher is connected to the machine, disconnect it.

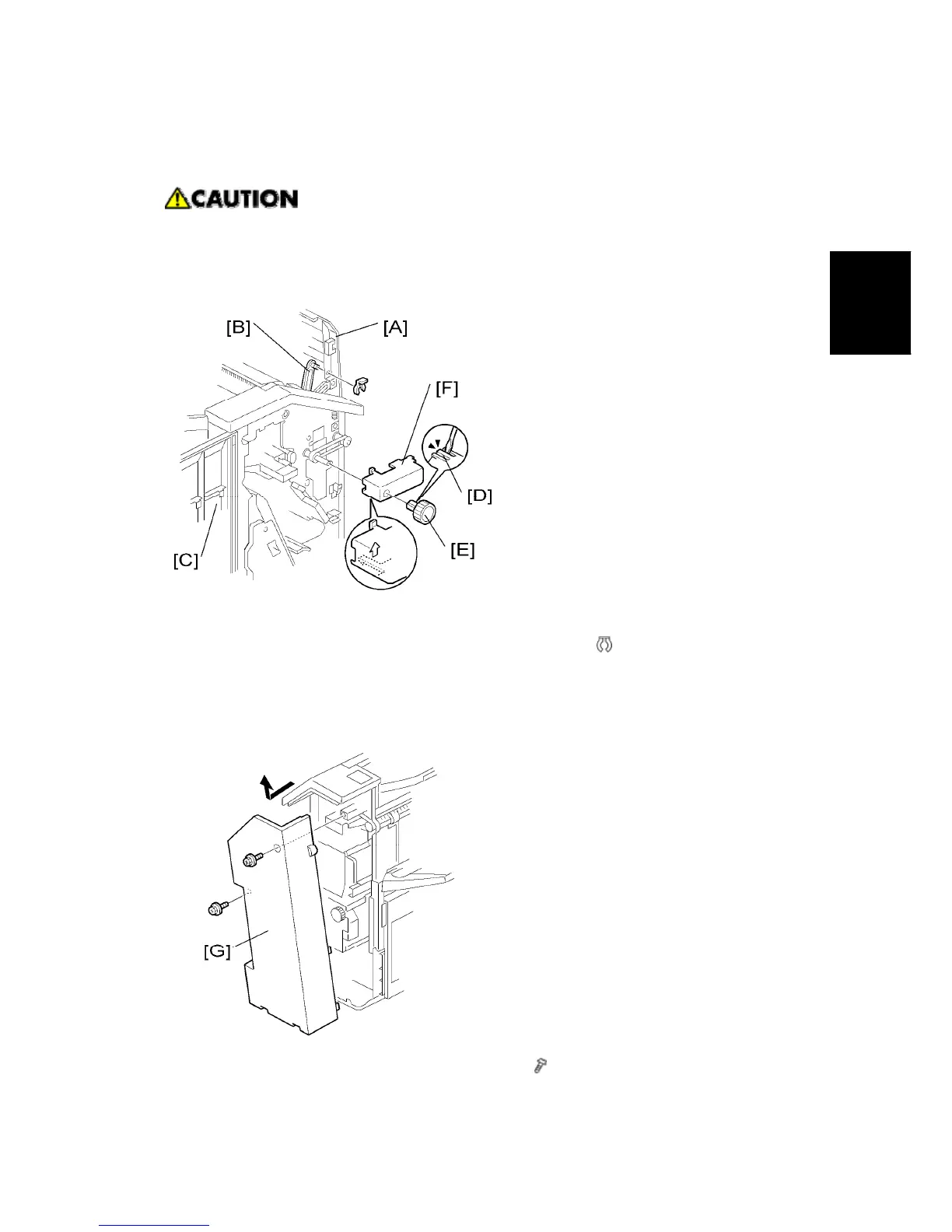

2. Open the top cover [A] and then release the guide arm [B] (
x 1).
3. Open the front door [C].
4. Pull the hook [D] up then remove the knob [E].
5. Timing belt cover [F].
6. Rear cover of the 1000-sheet booklet finisher [G] ( x 2).
