Ricoh D017 - Page 104

Punch Unit (B807)
SM 2-58 D017/D018/D019/D020/D084/D085

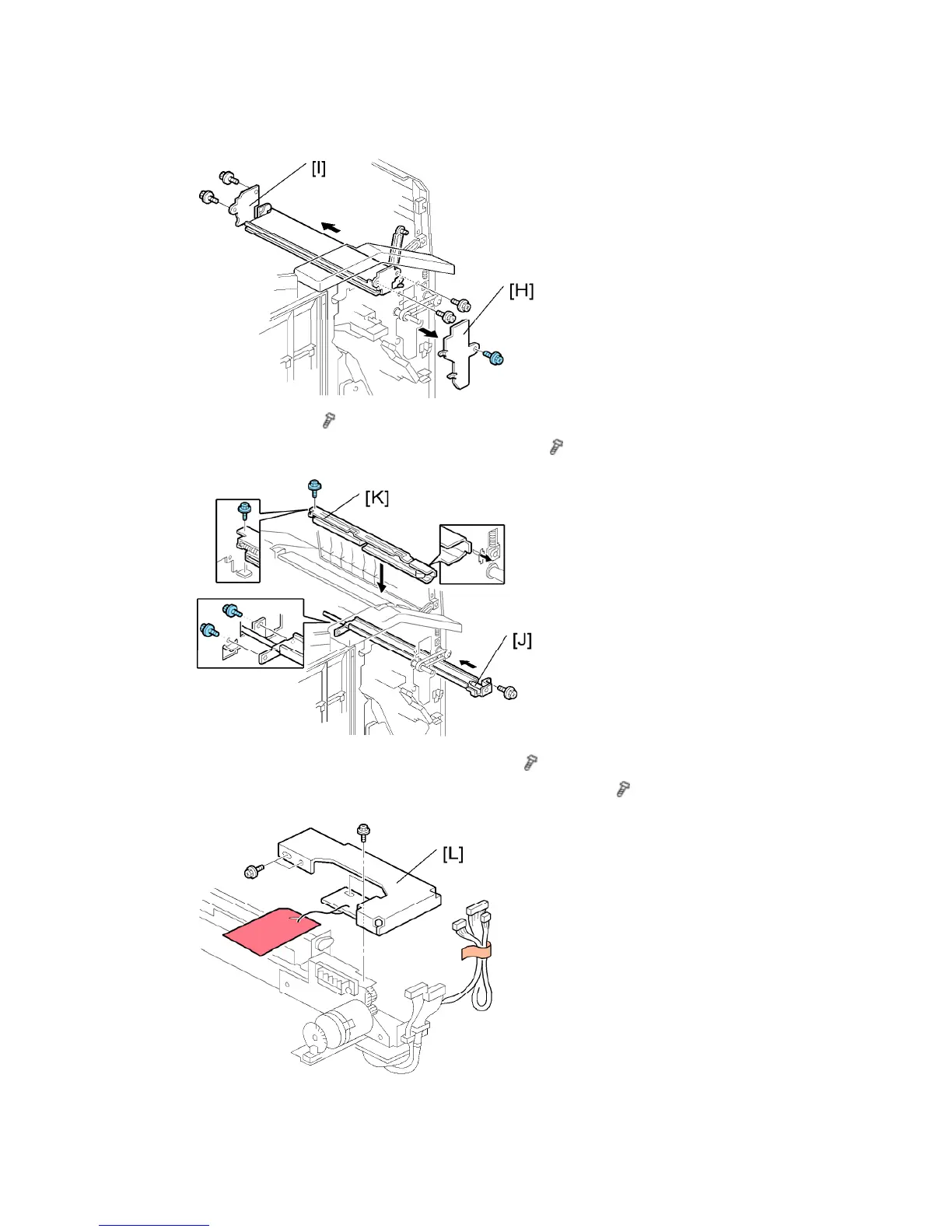

7. Cover bracket [H] (
x 1)
8. Remove the paper guide plate [I] from the rear side (
x 4).
9. Install the punch unit stay [J] from the front side (
x 3).
10. Install the sub-scan registration sensor guide [K] from the top (
x 1).
