Ricoh D017 - Page 116

Heaters
SM 2-70 D017/D018/D019/D020/D084/D085
9. Put the connector [G] through the cutout.
10. Connect it to the connector [H] (blue and red cords) in the frame of the machine.
11. Reassemble the machine.
2.18.2 TRAY HEATER (COPIER)
 Disconnect the copier power cord before you start this procedure.

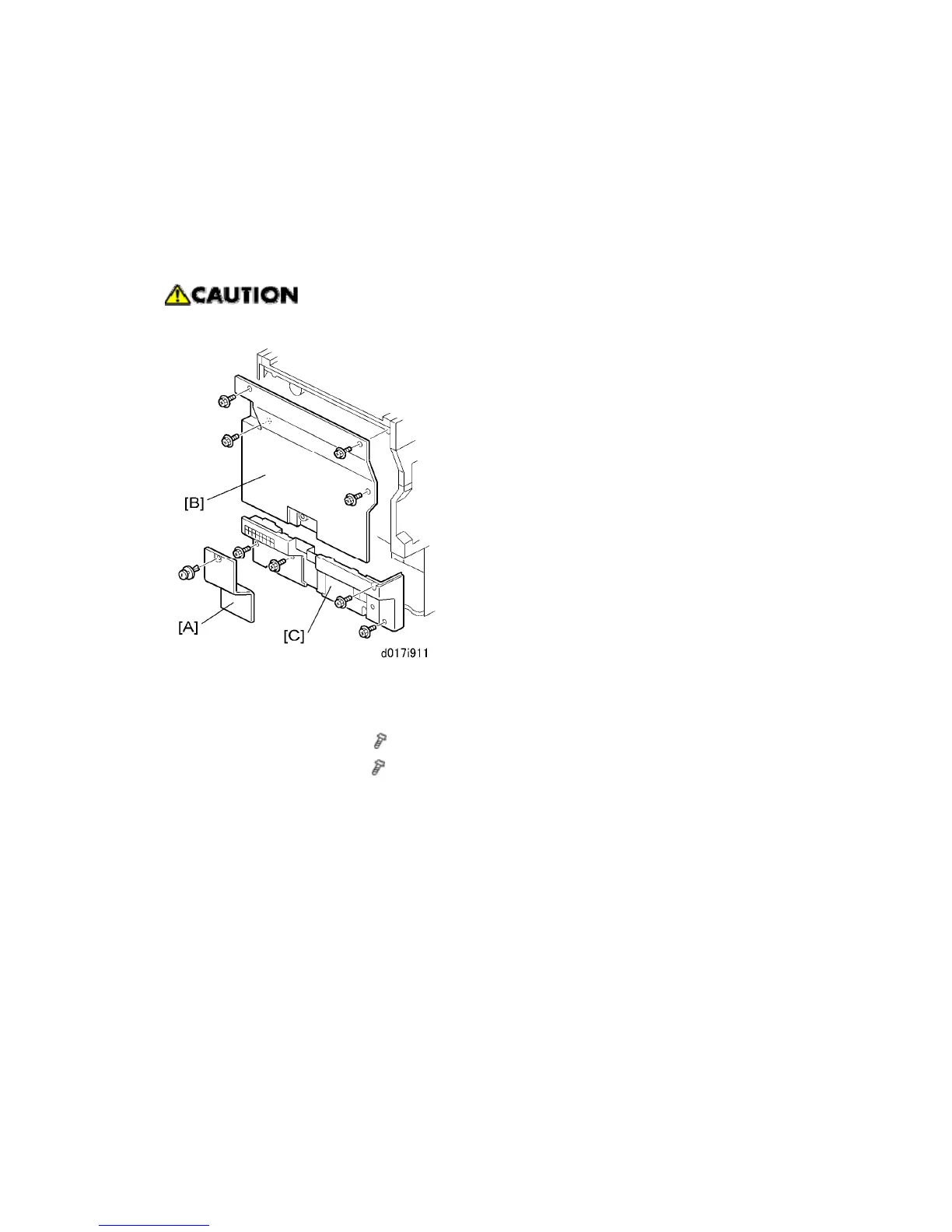

1. Remove:
 Connector cover [A]
 Rear upper cover [B] (
x 4)
 Rear lower cover [C] (
x 4)
