Heaters
D017/D018/D019/D020/D084/D085 2-71 SM
Installation

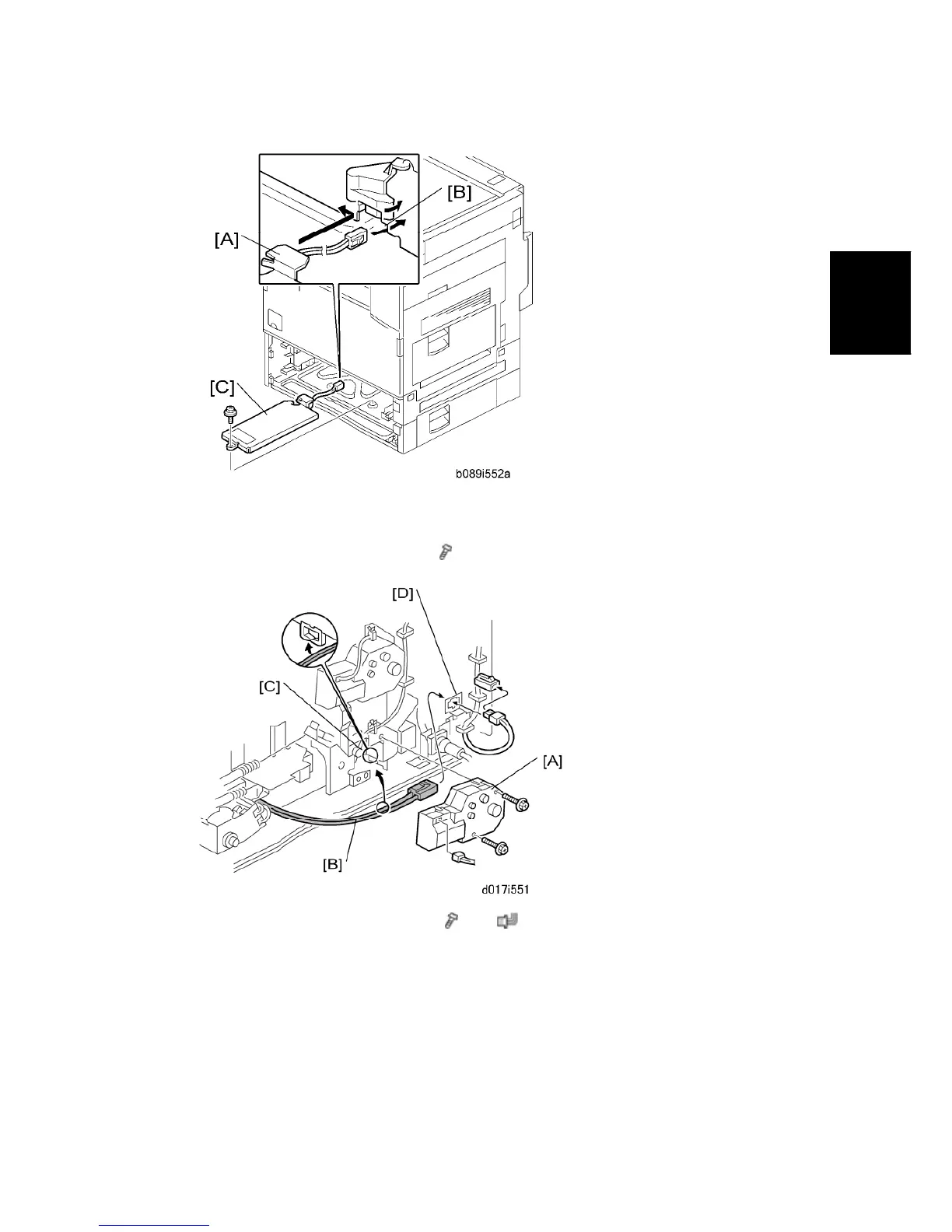

2. Slide out the 1st and 2nd paper trays.
3. Pass the connector [A] through the opening [B].
4. Install the tray heater assembly [C] (
x 1).
5. Remove the 2nd paper lift motor [A] (
x 2, x 1).
6. Route the heater cable [B] as shown.
7. Clamp the heater cable at [C] as shown.
8. Connect the heater cable to the ac cable at [D].
To Next Page
