Heaters
SM 2-72 D017/D018/D019/D020/D084/D085
2.18.3 TRAY HEATER (OPTIONAL PAPER TRAY UNIT)
 Disconnect the copier power cord before you start this procedure.

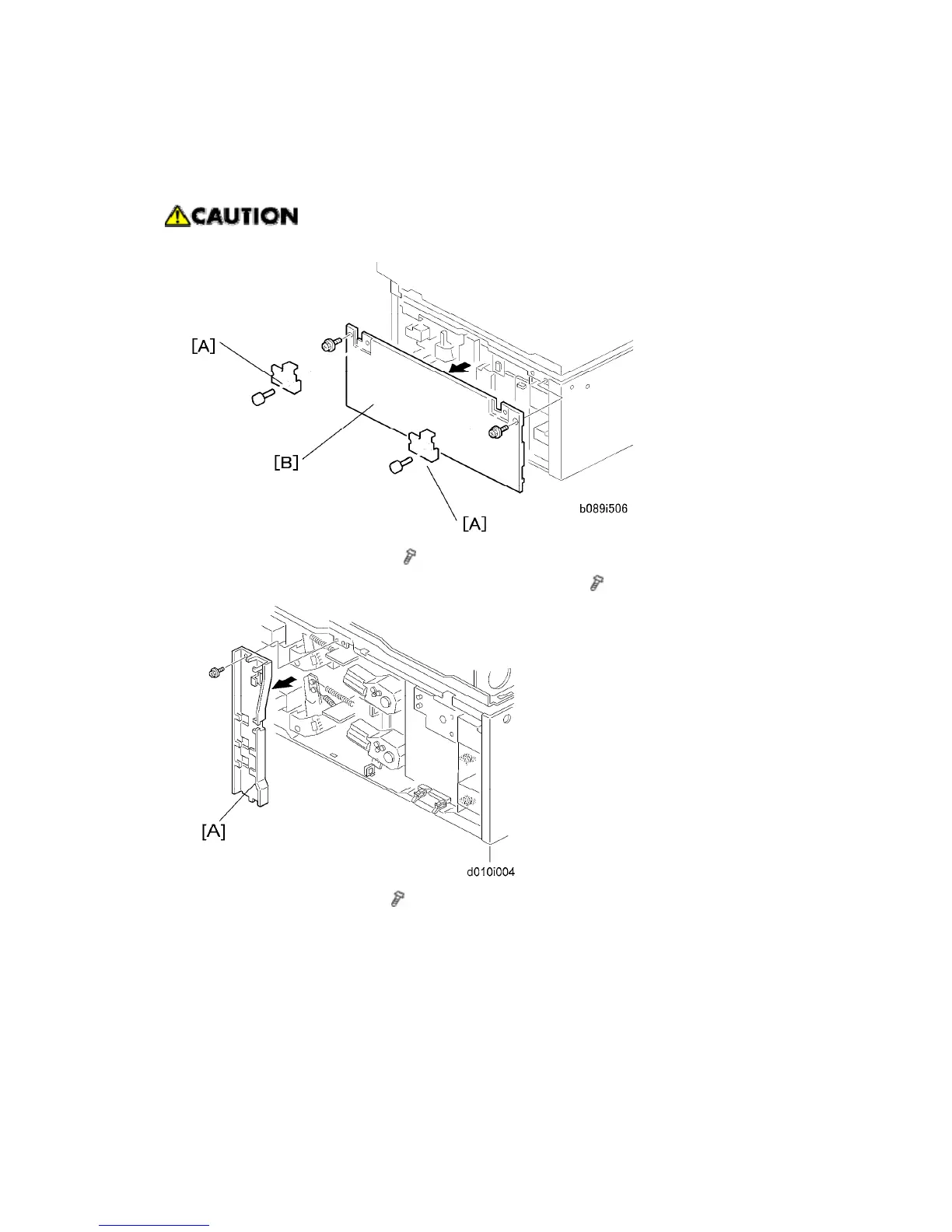

1. Remove the joint brackets [A] (
x 1 each).
2. Remove the rear cover [B] for the optional paper tray unit (
x 2).
3. Remove the cable guide [A] (
x 1).
