Heaters
D017/D018/D019/D020/D084/D085 2-73 SM
Installation

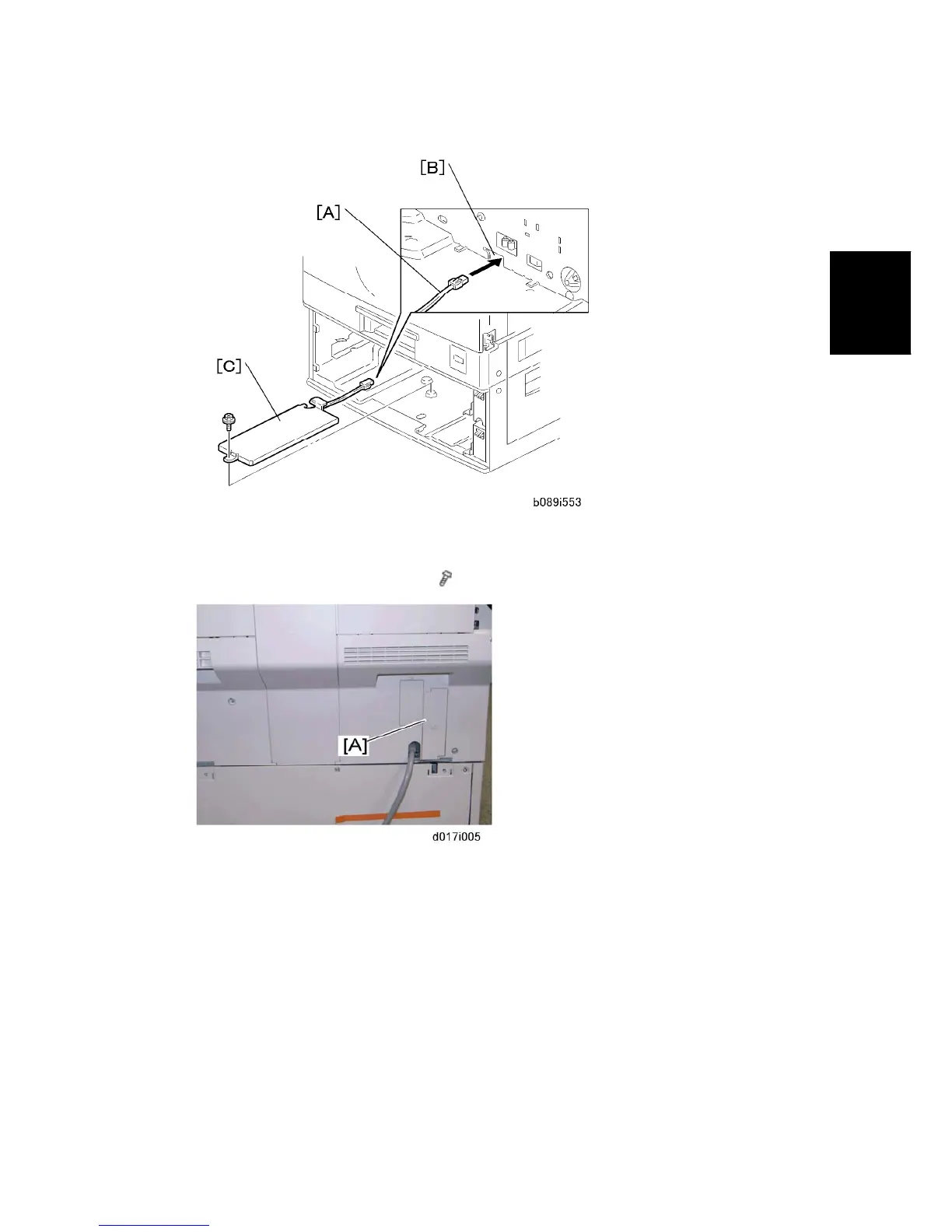

4. Slide out the two paper trays from the optional paper tray unit.
5. Pass the connector [A] through the opening [B].
6. Install the tray heater assembly [C] (
x 1).
7. Remove the heater harness cover [A] (rivet screw x 1).
