Heaters
SM 2-74 D017/D018/D019/D020/D084/D085

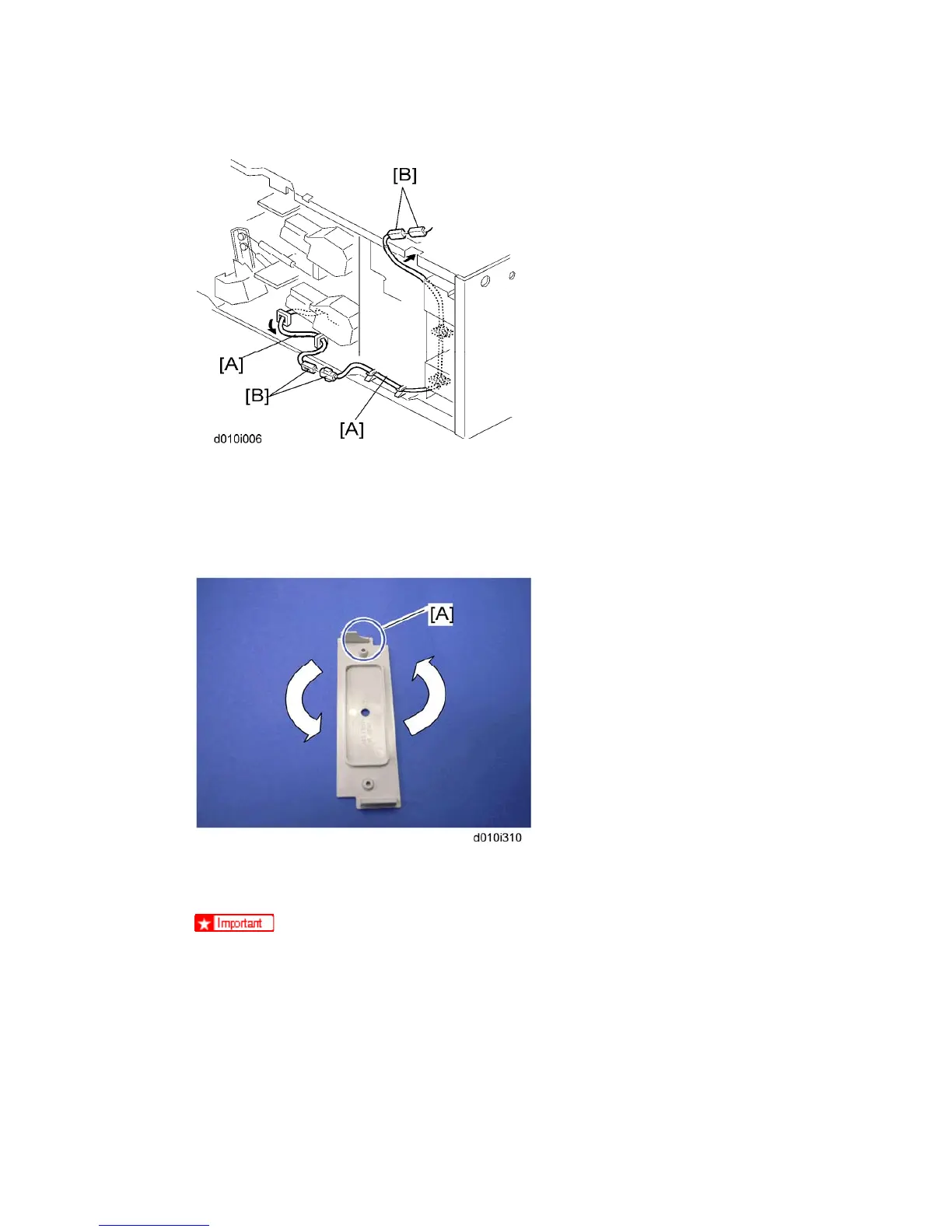

8. Clamp the cables [A], as shown.
9. Join the connectors [B].
10. Reinstall the cable guide.
11. Reinstall the rear cover for the optional paper tray unit.
12. Turn the heater harness cover upside down and reinstall it in the rear cover of the main
machine.
Make sure that cutout [A] is directed downward. Otherwise, the rear cover of
the main machine pinches the heater harness and breaks it.
13. Reinstall the two paper trays into the optional paper tray unit.
