Ricoh D017 - Page 121

Heaters
D017/D018/D019/D020/D084/D085 2-75 SM
Installation
14. Remove the 2nd paper tray of the copier.

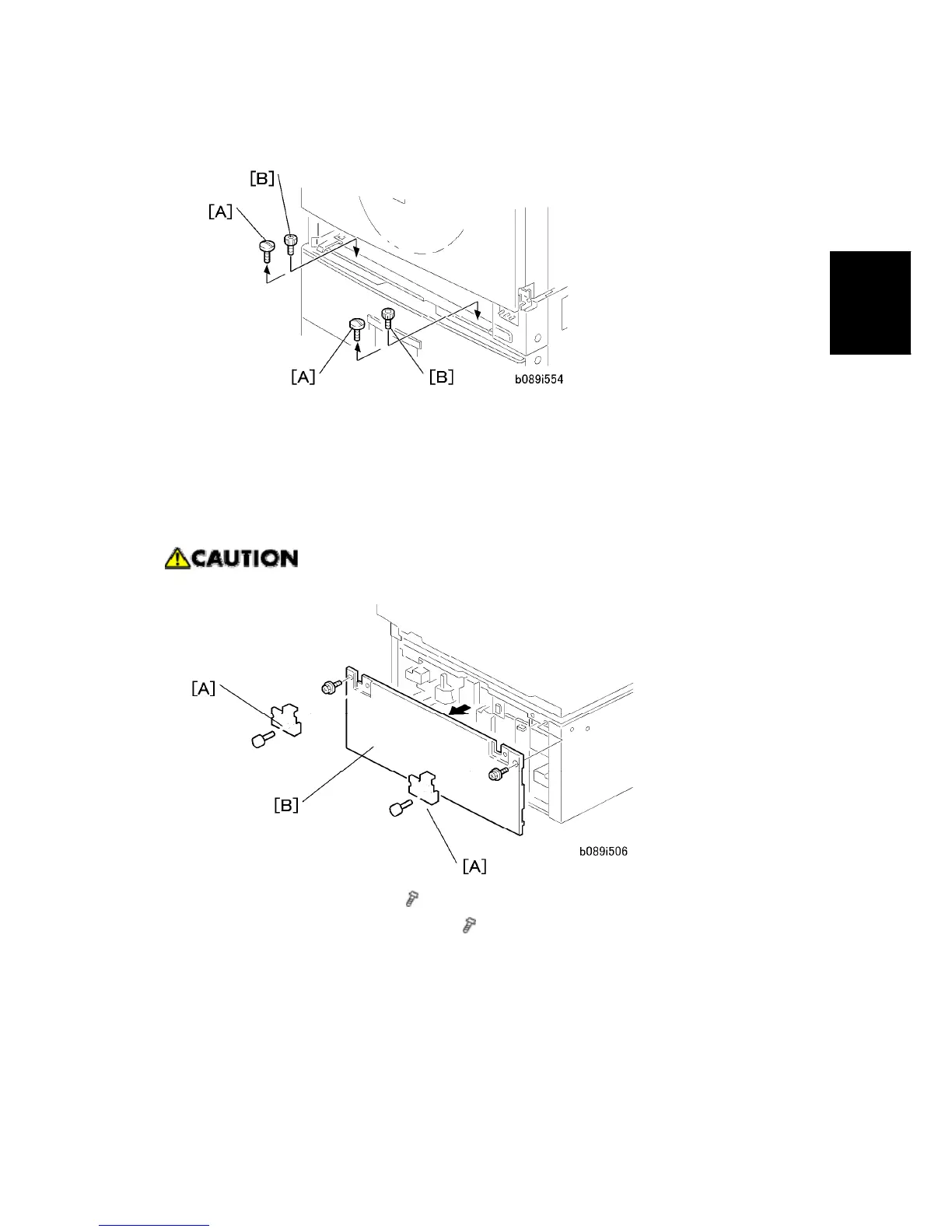

15. Remove two screws [A] and install the screws [B] which were removed in step 11.
16. Reinstall the 2nd paper tray of the copier.
2.18.4 TRAY HEATER (OPTIONAL LCT)
 Disconnect the copier power cord before you start this procedure.
1. Remove two joint brackets [A] (
x 1 each).
2. Remove the rear cover for the LCT [B] (
x 2).
