Heaters
SM 2-76 D017/D018/D019/D020/D084/D085

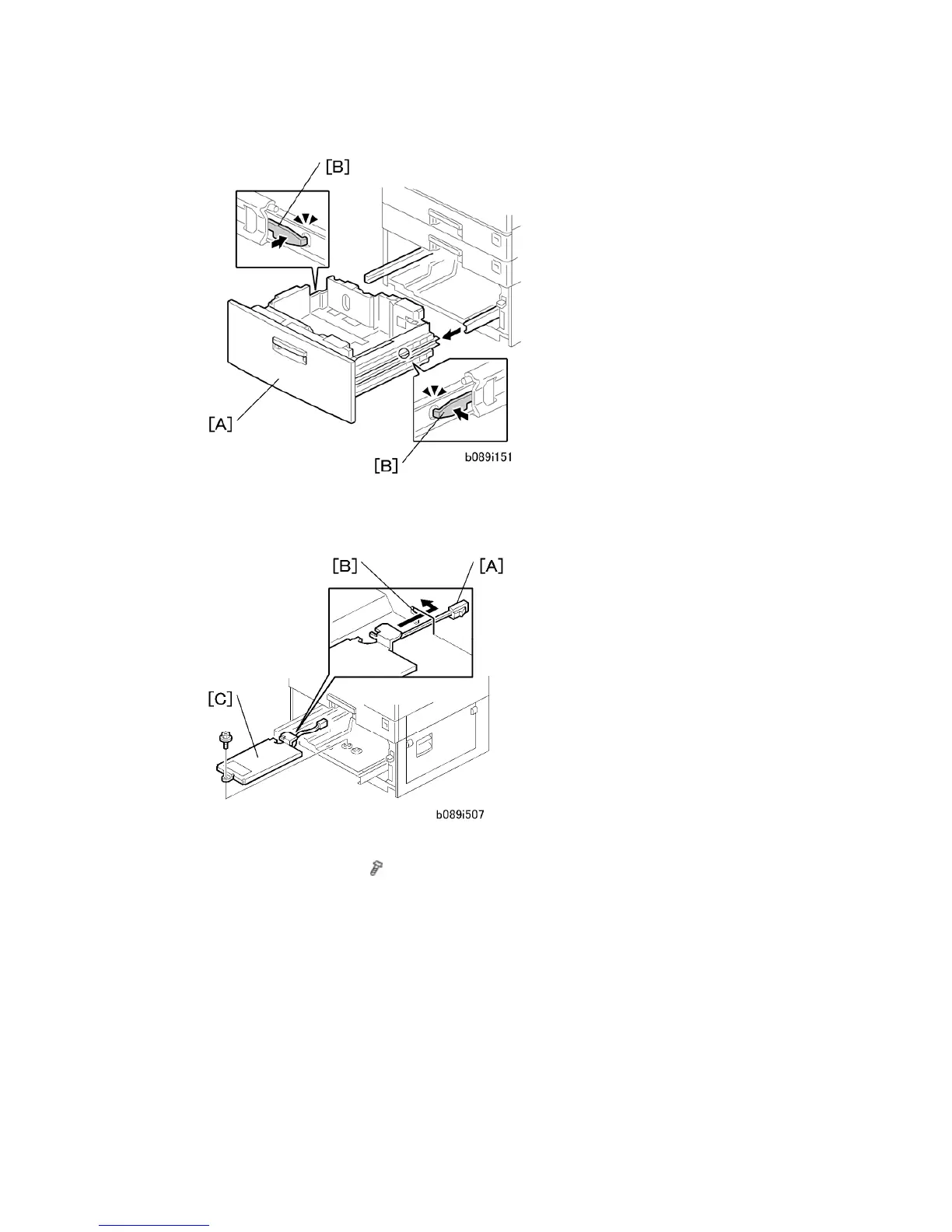

3. Slide out the paper tray [A].
4. Push the stopper [B] on both slide rails and remove the paper tray.
5. Pass the connector [A] through the opening [B].
6. Install the tray heater [C] ( x 1).
