Heaters
D017/D018/D019/D020/D084/D085 2-77 SM
Installation

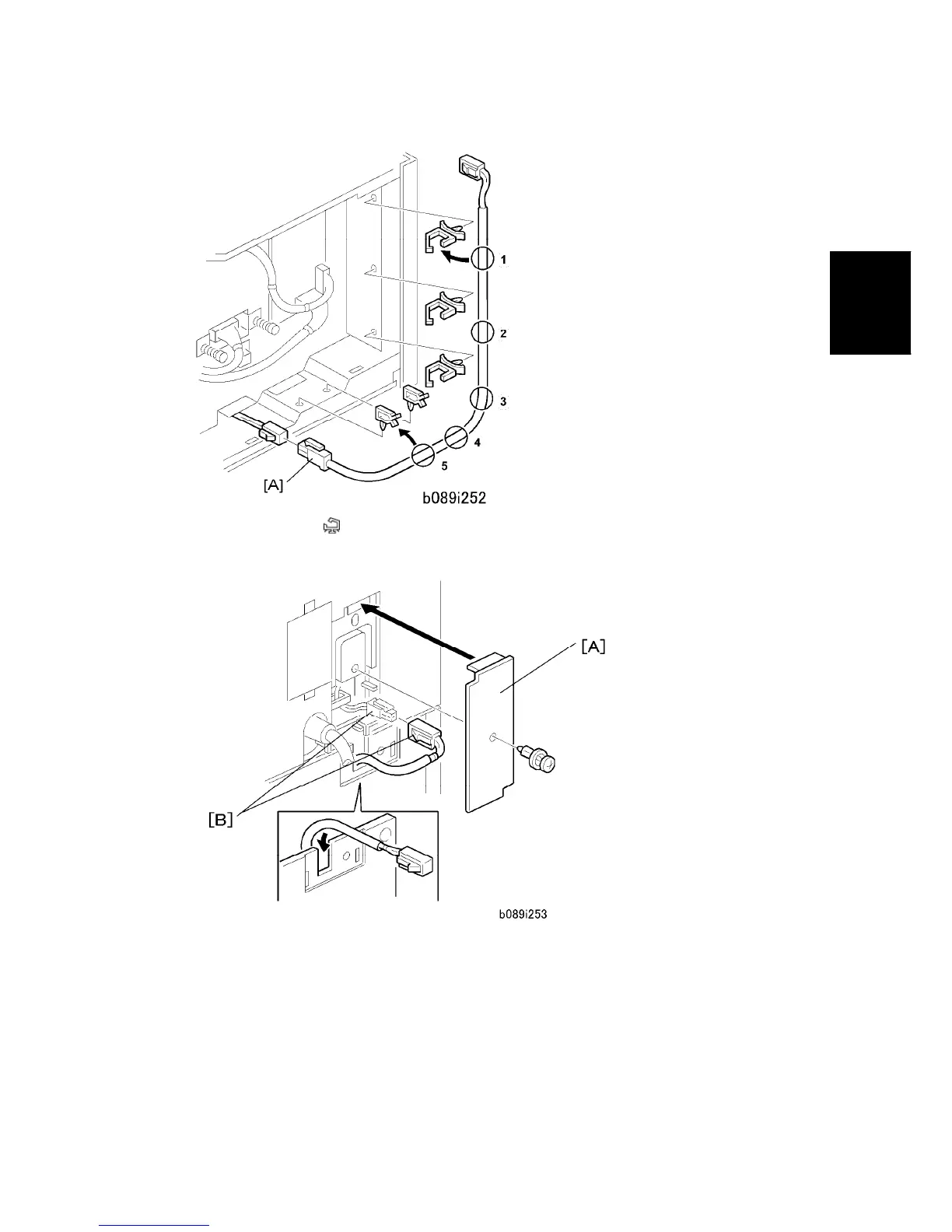

7. Install five clamps (
x 5).
8. Connect the cable tray heater cable [A].
9. Route the cable and clamp it.
10. Remove the connector cover of the copier [A].
11. Join the connectors [B].
12. Reinstall the connector cover of the copier.
