Hard Disk (D362)
SM 2-82 D017/D018/D019/D020/D084/D085
2.20 HARD DISK (D362)
2.20.1 ACCESSORY CHECK
No. Description Q’ty For D017/D019
1 HDD Unit 1
2 Screw 3
3 Keytop: Copy 2
4 Keytop: Document Server 2
5 Knob Screw 3 ---
= Necessary, --- = Not necessary

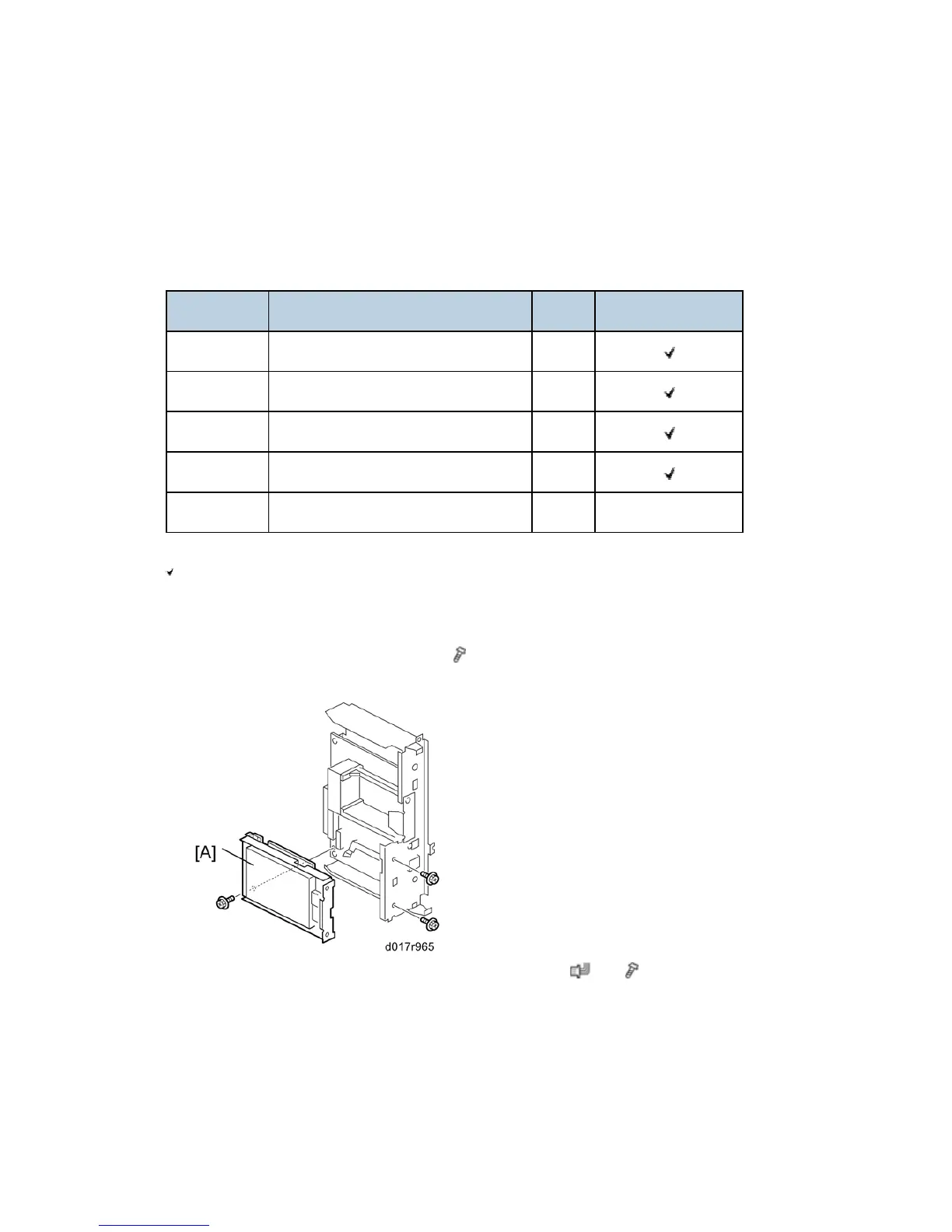

2.20.2 INSTALLATION
1. Remove the plastic application cover ( x1).
2. Remove the controller board. (See p.4-58 in the "Replace and Adjustment".)
3. Attach the HDD unit [A] to the controller board bracket (
x2, x3).
4. Reinstall the controller board with the HDD.
