Copy Data Security Unit (B829)
D017/D018/D019/D020/D084/D085 2-81 SM
Installation

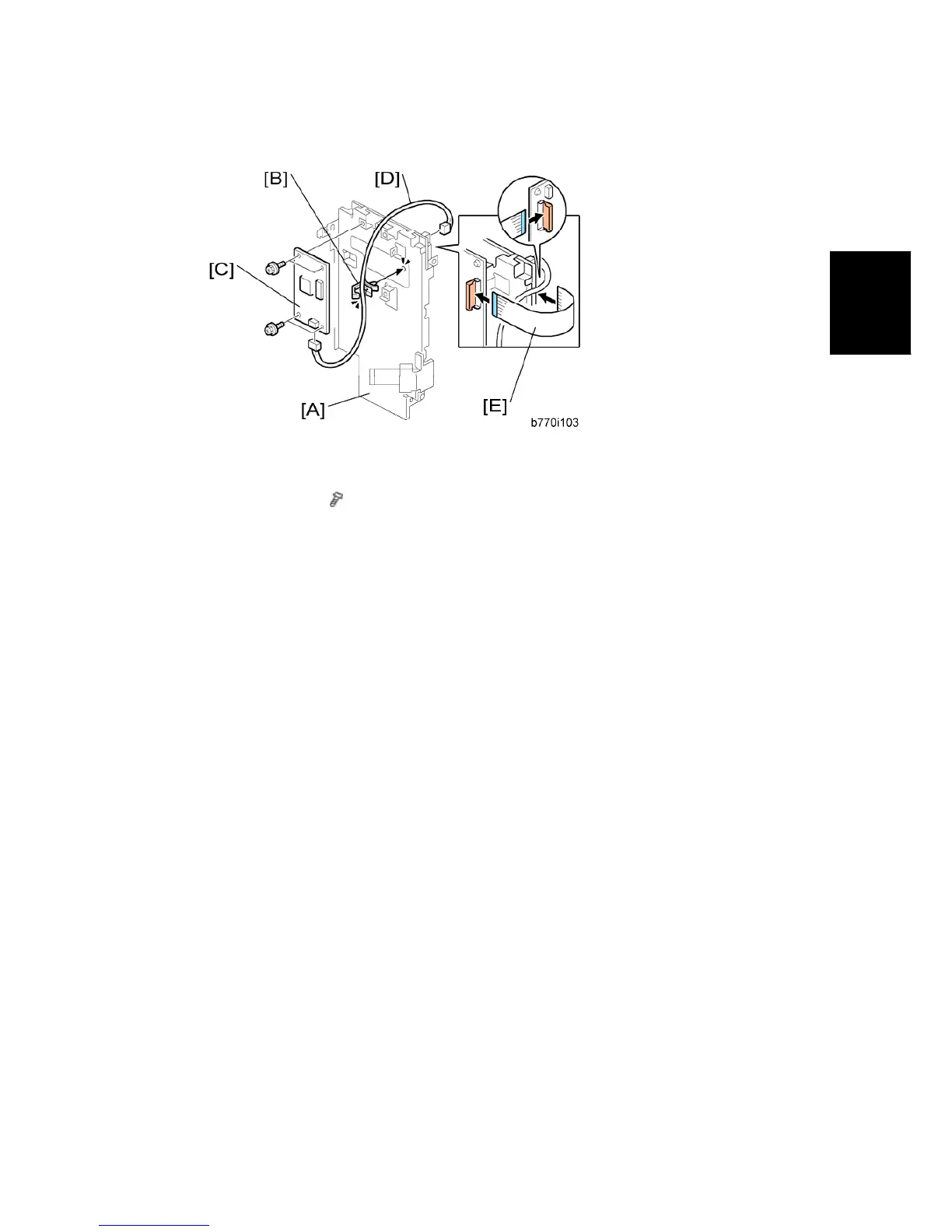

5. Attach the harness clamp [B].
6. Attach the ICIB [C] (
x4)
7. Connect the cable [D] between the ICIB [C] and the IPU Board [A].
8. Connect the flat film connector [E] to the ICIB and IPU boards.
9. Reinstall the IPU board.
10. Turn on the machine.
11. Enable the Copy Data Security function:
[User Tools]> System Settings> Administrator Tools> Data Security for Copying
