Interchange Unit (D371)
SM 2-30 D017/D018/D019/D020/D084/D085

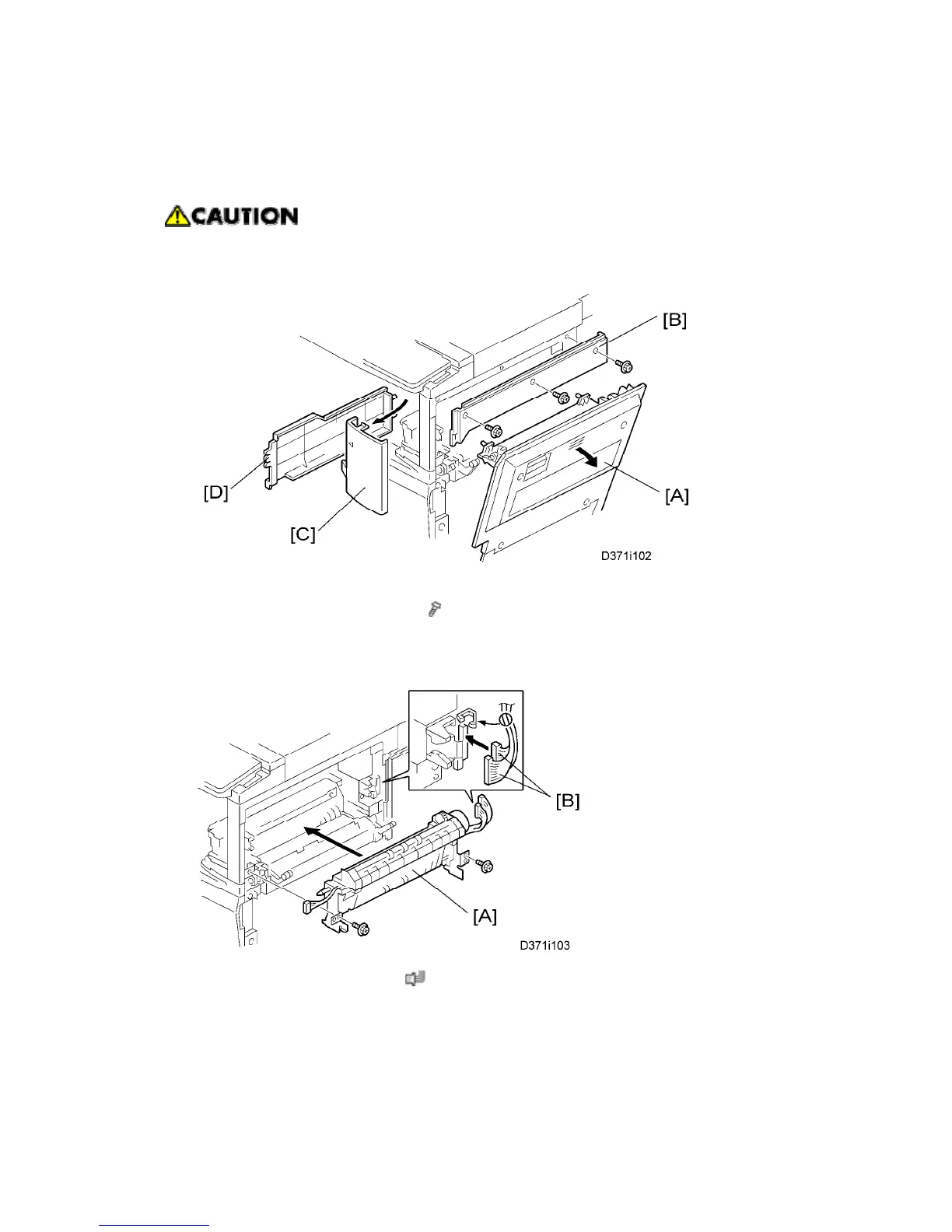

2.6.2 INSTALLATION PROCEDURE
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.
2. Open the right cover [A] of the copier.
3. Remove the right upper cover [B] (
x 3)
4. Remove the front right cover [C] (hook)
5. Slide out the exit cover [D].
6. Install the interchange unit [A] (
x 2).
7. Connect the two harnesses [B].
To Next Page
