1-Bin Tray Unit (D367)
SM 2-34 D017/D018/D019/D020/D084/D085

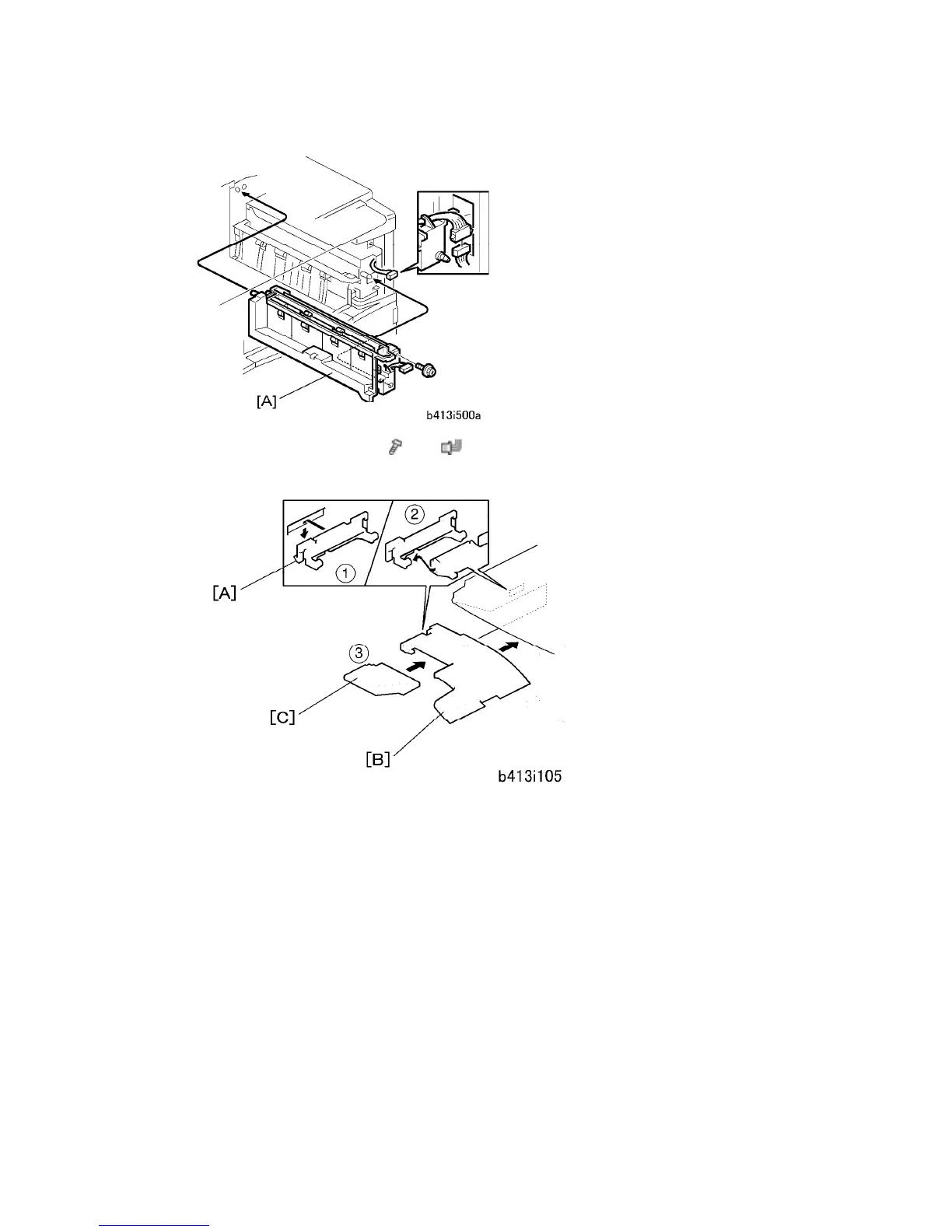

9. Install the 1-bin tray unit [A] (
x 1, x 1)
10. Re-install the front right cover.
11. Install the tray guide [A].
12. Install the tray [B].
13. Install the sub-tray [C].
14. Turn on the main power switch and check the 1-bin tray unit operation.
