1-Bin Tray Unit (D367)
D017/D018/D019/D020/D084/D085 2-33 SM
Installation

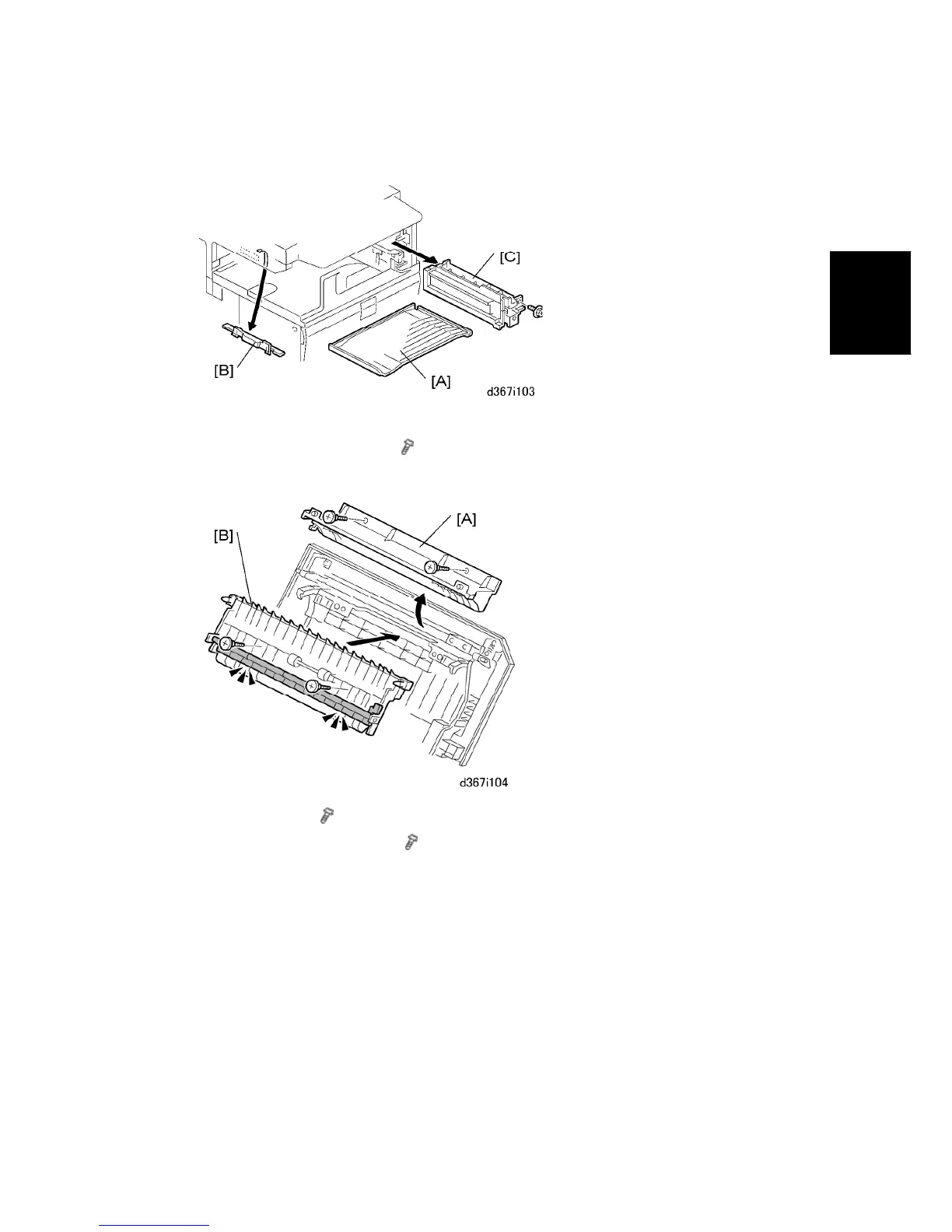

4. Remove the front right cover [A].
5. Remove the duplex tray [A] and duplex tray guide [B].
6. Remove the duplex guide [C] (
x 1).
Install the 1-Bin Tray
7. Remove plate [A] (
x 2)
8. Attach the 1-bin tray guide [B] (
x 2)
