Shift Tray (D385)
SM 2-36 D017/D018/D019/D020/D084/D085

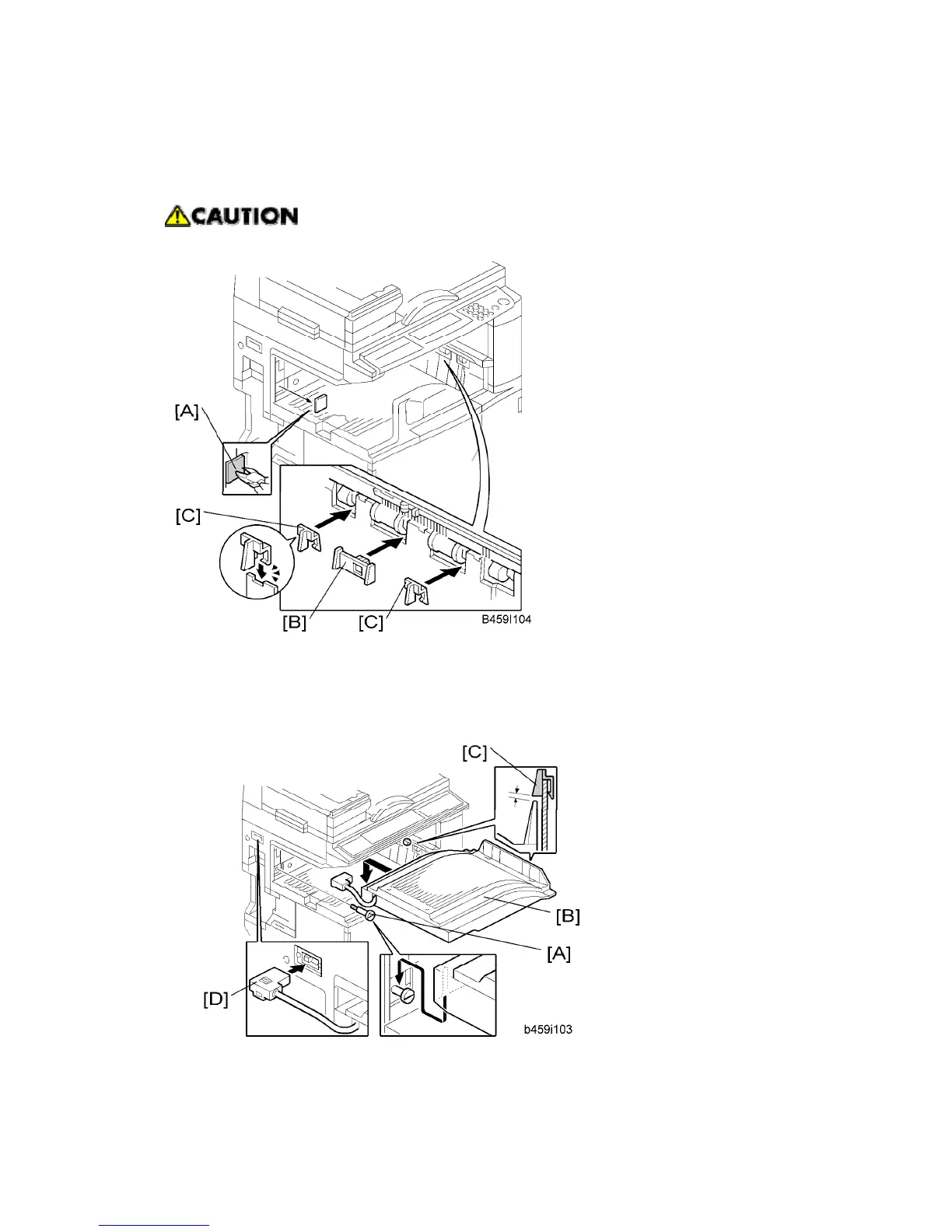

2.8.2 INSTALLATION PROCEDURE
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.
2. Remove the plate [A].with nippers.
3. Install the large paper guide [B] and two small paper guides [C], as shown.
4. Install the stepped screw [A].
5. Install the shift tray unit [B], as shown.
To Next Page
