Bypass Feed Unit (D370)
D017/D018/D019/D020/D084/D085 2-39 SM
Installation
2.9.2 INSTALLATION PROCEDURE
Disconnect the copier power cord before you start this procedure.
1. Remove all tapes.

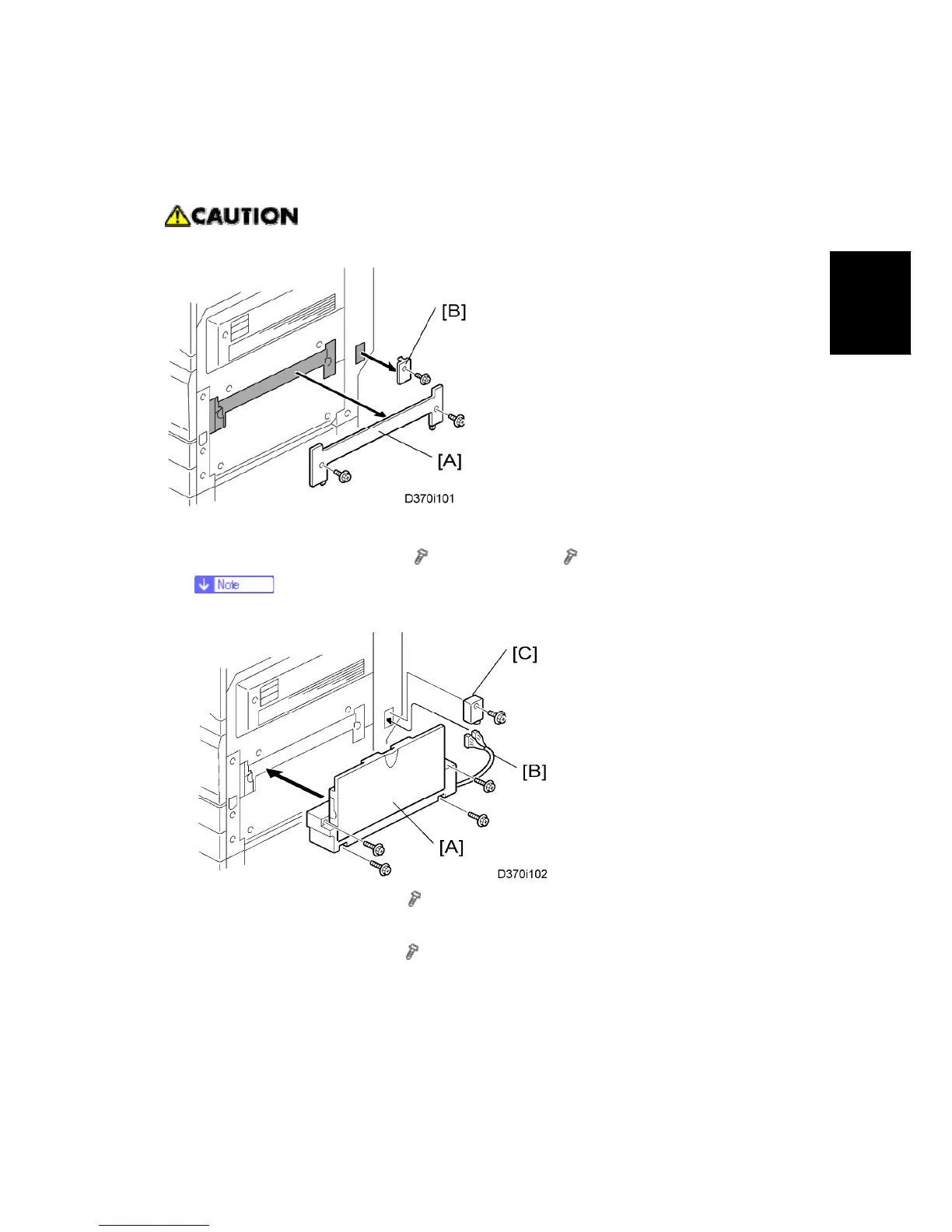

2. Remove the entrance cover [A] (
x 2) and cover [B] ( x 2).
These removed screws will be used in steps 3 and 5.
3. Install the by-pass tray unit [A] (
x 4: two of these are removed in Step 2).
4. Connect the cable [B] to the machine.
5. Install the connector cover [C] (
x 1: this screw is removed in Step 2).
To Next Page
