Bypass Feed Unit (D370)
SM 2-40 D017/D018/D019/D020/D084/D085

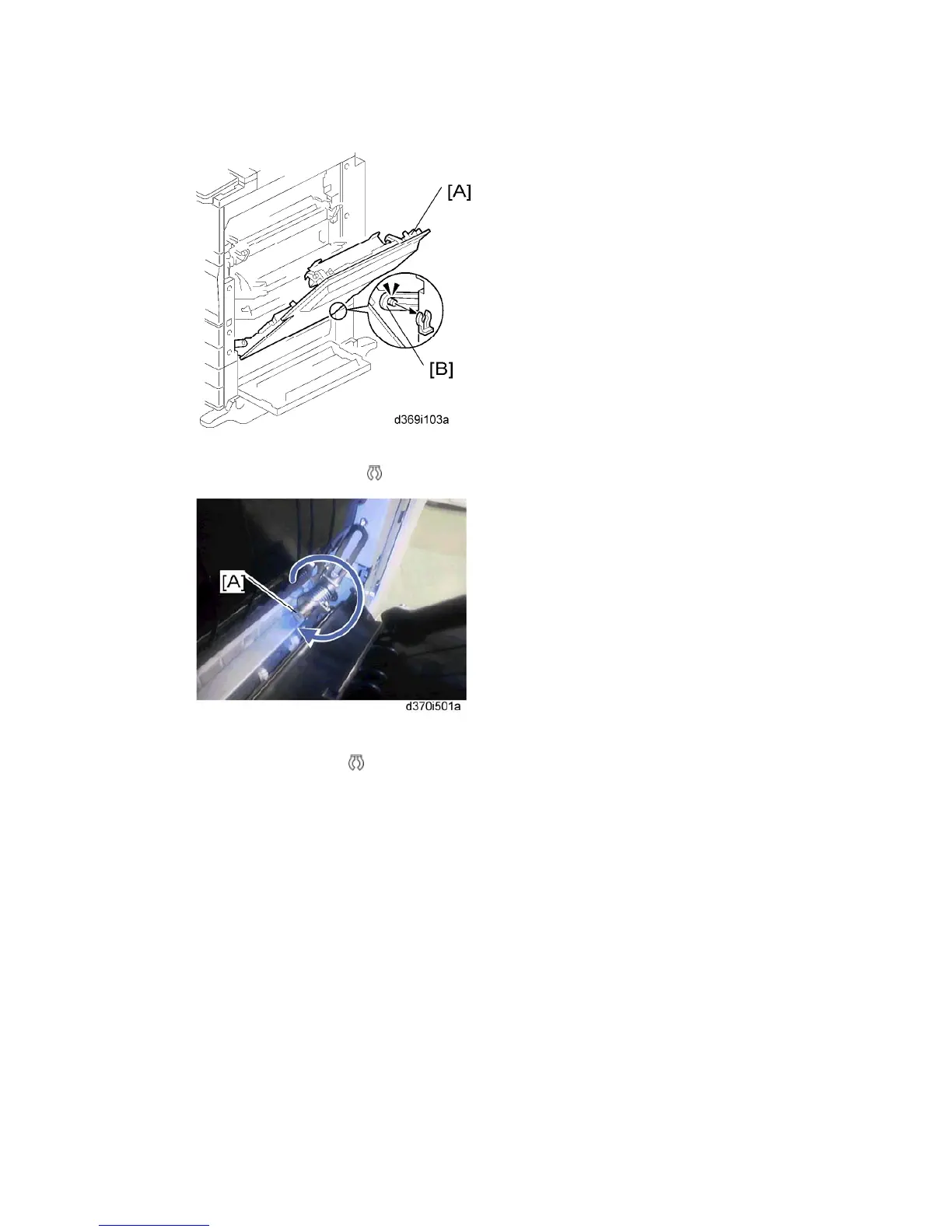

6. Open the right cover [A].
7. Release the rear link [B] (
x 1).
8. Rotate the rear link shaft [A] clockwise by 360 degrees to strengthen the spring tension.
9. Reattach the rear link (
x 1).
10. Close the right cover.
11. Turn the main power switch on and check the by-pass tray function.
12. Make a copy from the by-pass tray. Then check the registration.
