1000-Sheet Finisher (B408)
D017/D018/D019/D020/D084/D085 2-49 SM
Installation
2.12.2 INSTALLATION PROCEDURE
 Unplug the main machine power cord before starting the following procedure.
The following options must be installed before you install this finisher:
 Bridge Unit (D368)
 Paper Tray Unit (D331) or LCT (B391)

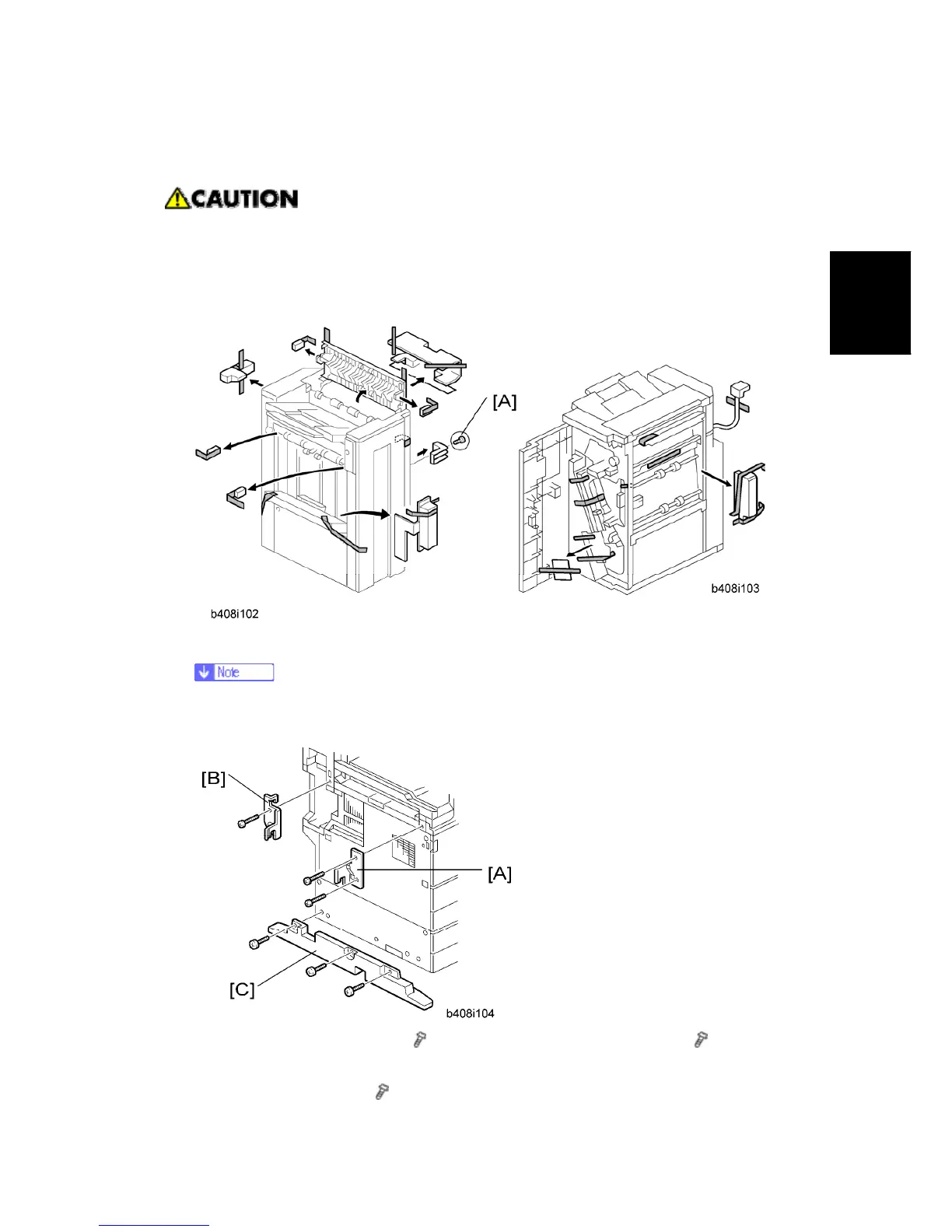

1. Unpack the finisher and remove the tapes.
 Be sure to keep screw [A]. It will be needed to secure the grounding plate in
step 4.
2. Install the front joint bracket [A] (
x 2; M4x17) and rear joint bracket [B] ( x 1;
M4x17).
3. Remove the left stand [C] (
x 3).
