1000-Sheet Finisher (B408)
SM 2-50 D017/D018/D019/D020/D084/D085

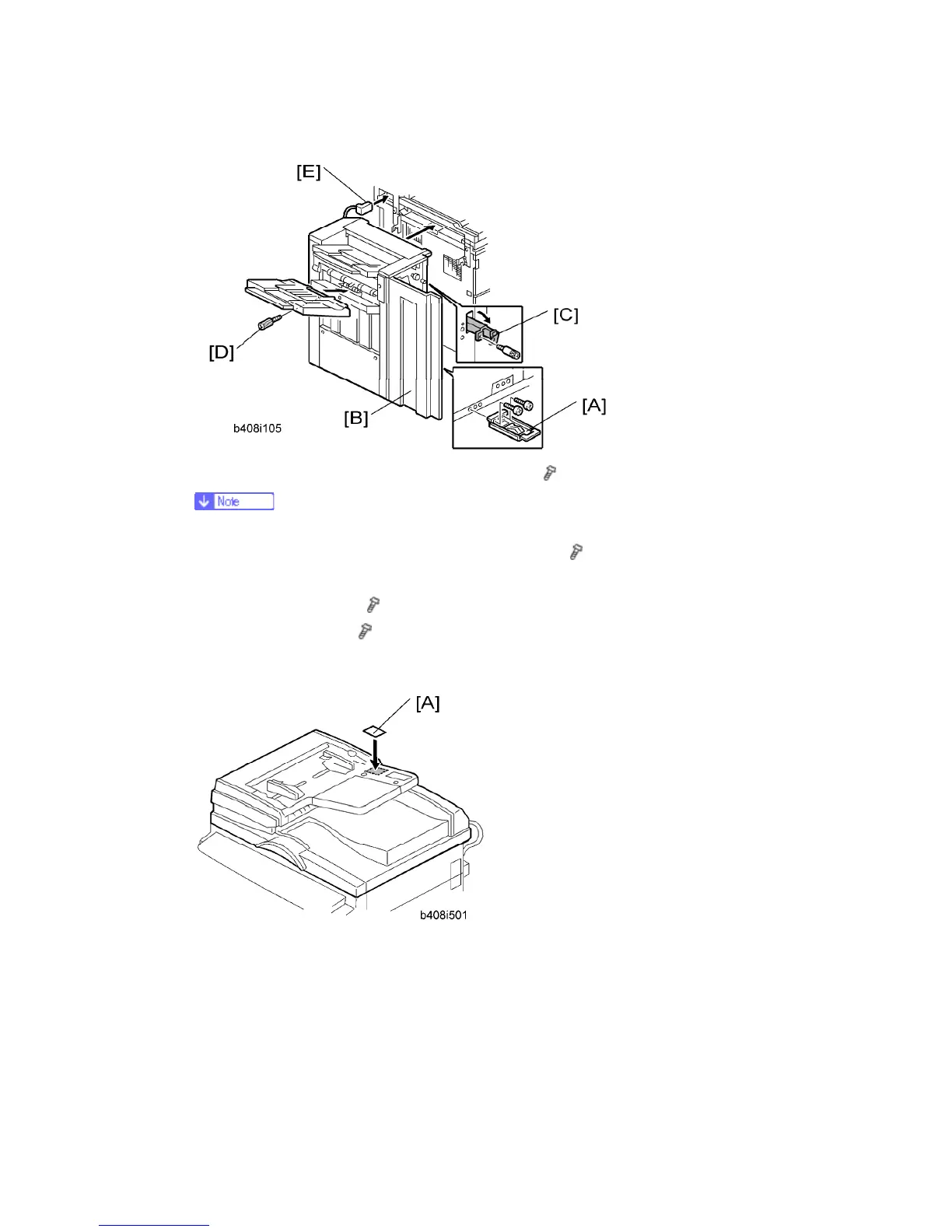

4. Install the lower grounding plate [A] on the finisher ( x 2; M3x8).
Use the screw removed in step 1 and the screw from the accessory box.
5. Open the front door [B]. Then pull the locking lever [C] (
x 1; knob M3x8).
6. Align the finisher on the joint brackets, and lock it in place by pushing the locking lever.
7. Secure the locking lever (
x 1; knob M3x8) and close the front door.
8. Install the copy tray [D] (
x 1; knob M4x10).
9. Connect the finisher cable [E] to the main machine.
10. Attach the staple position decal [A] to the ARDF as shown.
11. Turn on the ac switch and check the finisher operation.
