198 Chapter 8 Solve a problem EN

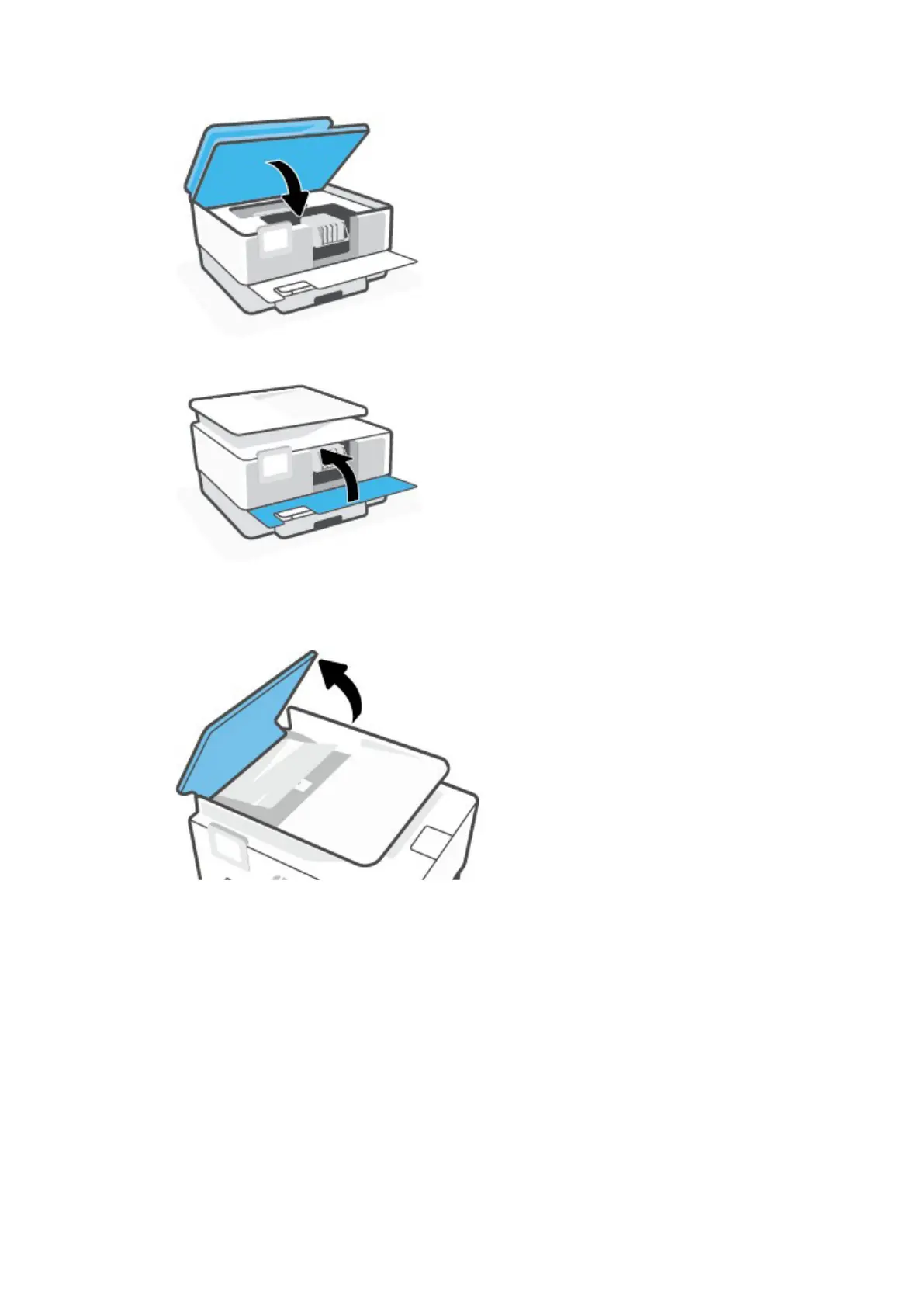

8. Close the cartridge access door.

9. Close the front door.

To clear a paper jam from the document feeder

1. Lift the cover of the document feeder.
