2.Replacement and Adjustment
20

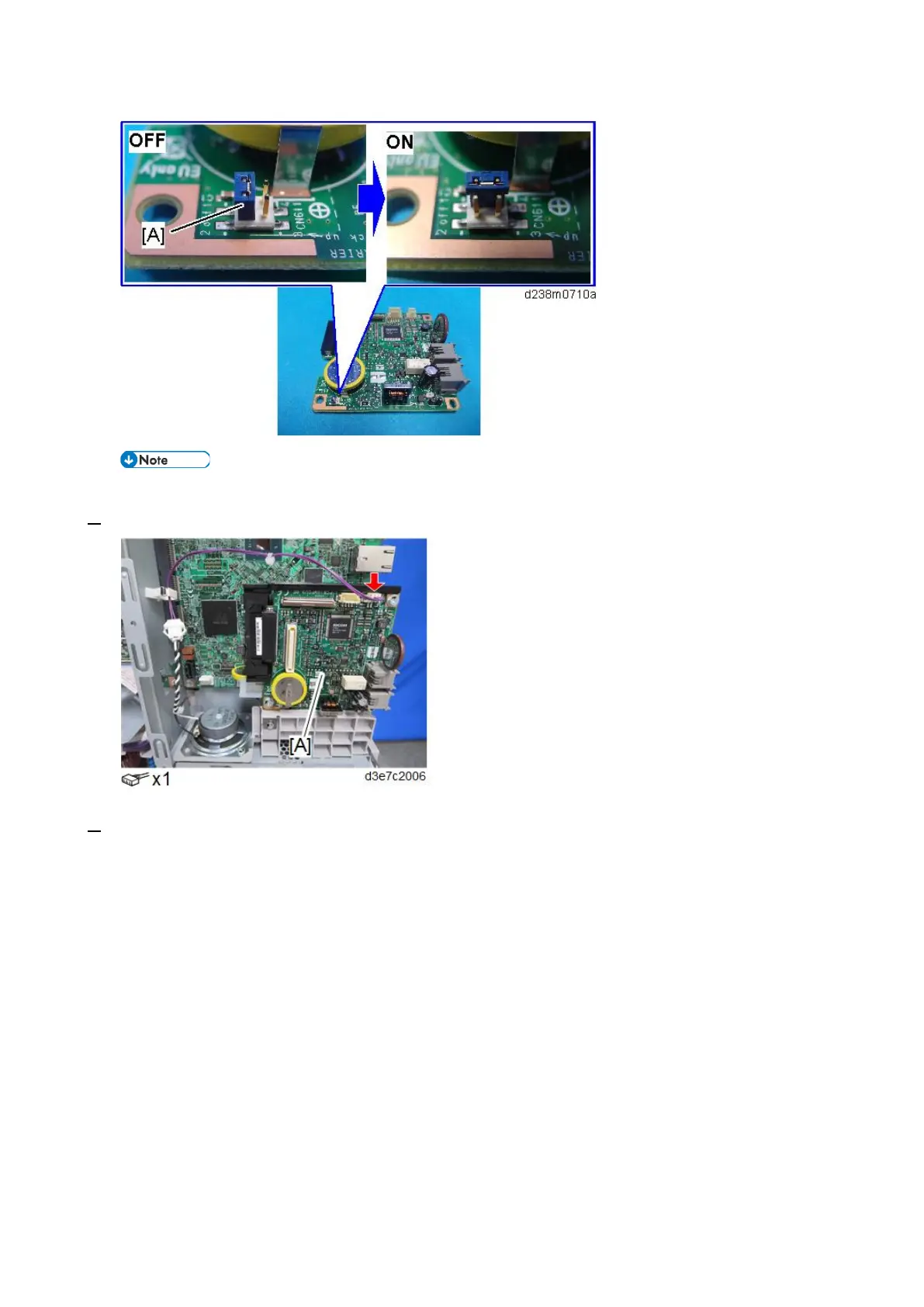

If the battery jumper switch is not at the correct position, registering the fax unit will fail.
7. Attach the new FCU board [A].
8. Connect one end of the FFC to CN603 of the new fax unit [A].
• This FFC is provided with the new FCU board.
• When inserting the FFC, lift the lever to release the lock and then push the lever to lock.
• Make sure that the blue tapes of the FFC face down and it is not slanted.

Ricoh MP C407 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed (B/W)	42 ppm
Print Speed (Color)	42 ppm
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Monthly Duty Cycle	150, 000 pages
Paper Size	A4, A5, B5
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Apple AirPrint, Google Cloud Print, Mopria
Operating System Compatibility	Windows, Mac OS, Linux
