Ricoh MP C407

Scanner
244

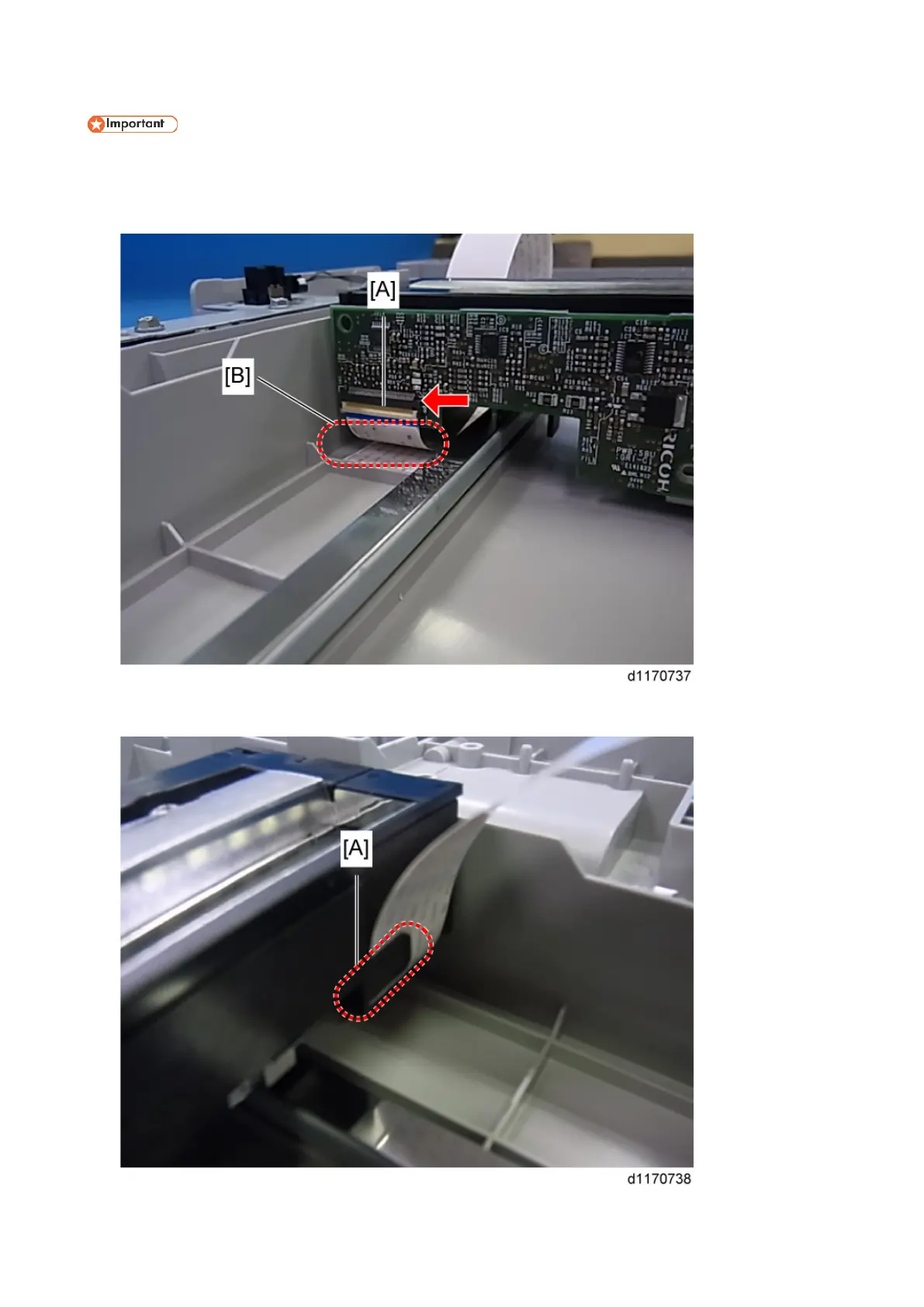

• Never connect the FFC to the carriage connector at an angle. Otherwise, the BiCU or the SBU may be
damaged.
• The FFC must not be sagging and must not drag on the bottom of the scanner unit [B].
• The FFC must be hooked at part [A] of the carriage.
