Anti-condensation Heater (Mainframe)
82

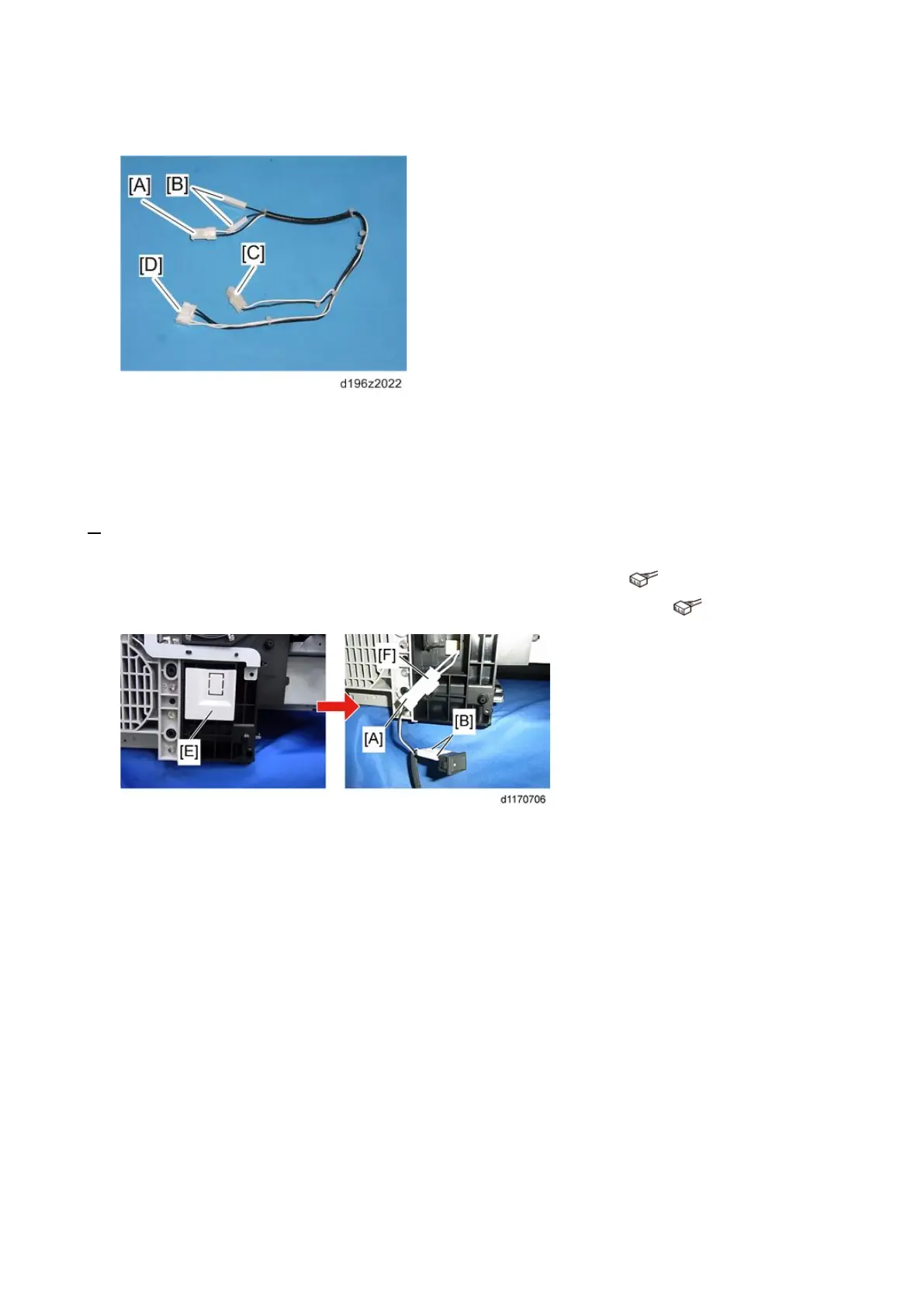

Junction harness connections:
A: To the heater
B: To the power switch
C: To the optional PFU heater (if installed)
D: To the PSU
3.
Do the following steps:
• Remove the cover [E], and then pull out the heater harness [F].
• Connect the heater harness to the connector of the junction harness [A]. ( × 1)
• Connect the heater power switch to the connectors of the junction harness [B]. ( × 2)
To Next Page
