Fusing and Exit
SM 4-63 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

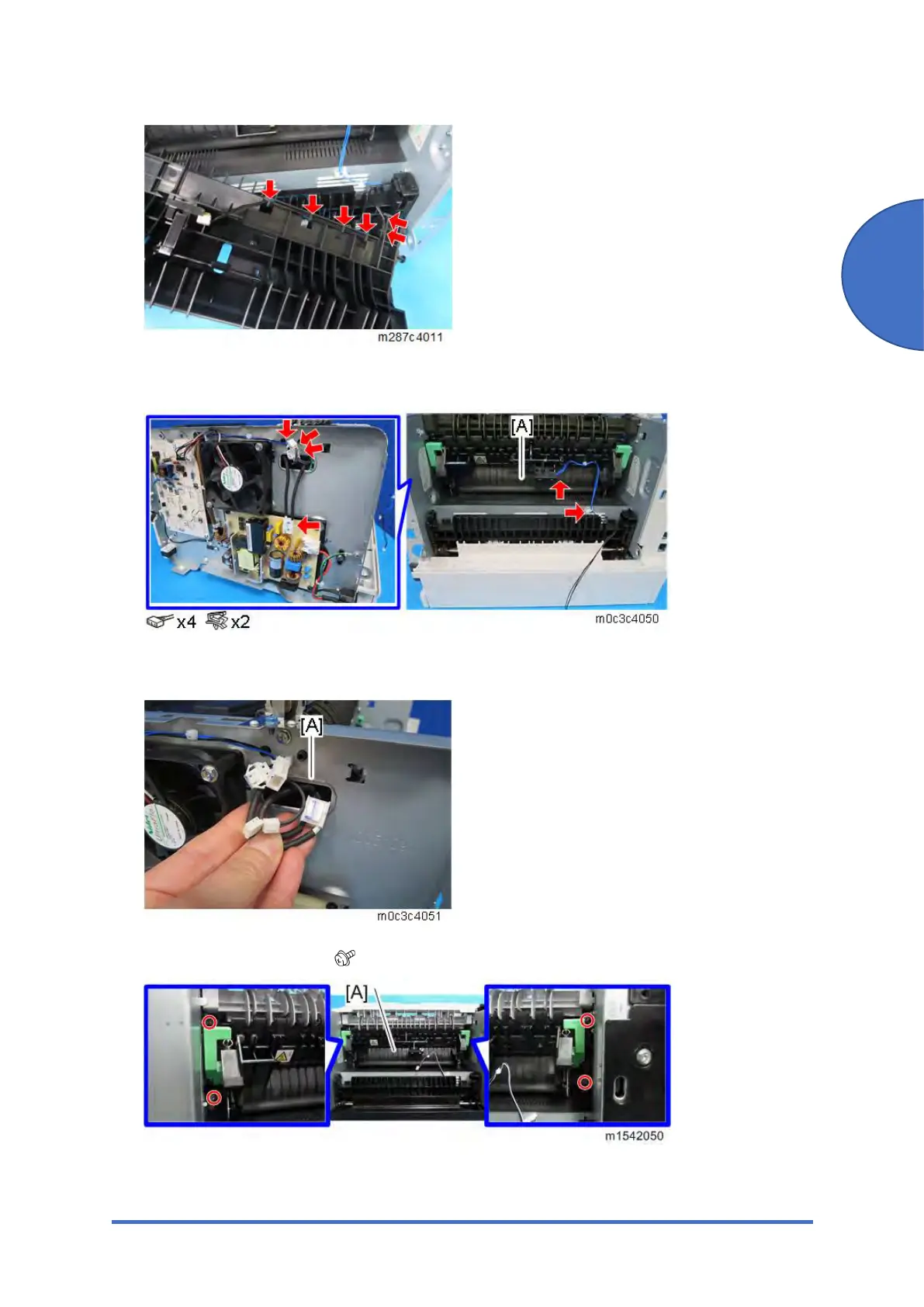

3. Disconnect the connectors from the fusing unit [A].
4. Pass the harnesses through the hole [A] inside the machine.
5. Remove the fusing unit [A] (
x 4).
