Ricoh SP 330DN - External Covers and Paper Feed Unit; Right Cover; Replacement and Adjustment

External Covers and Paper Feed Unit
SM 1 M534
PAPER FEED UNIT
PB1130
(M534)
1. REPLACEMENT AND ADJUSTMENT
1.1 EXTERNAL COVERS AND PAPER FEED UNIT
• Turn off the main power switch and unplug the machine before attempting any
procedure in this section.

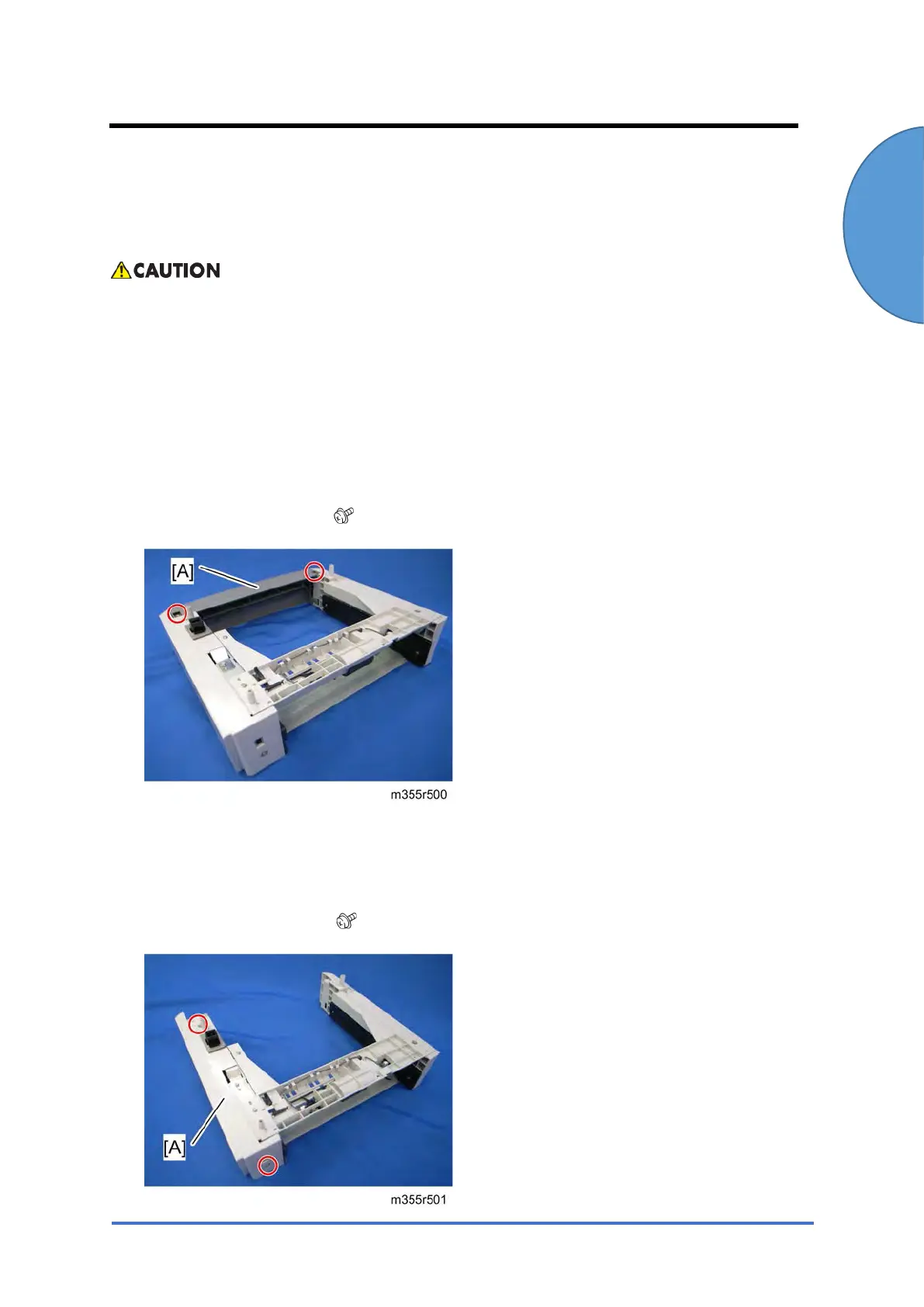

1.1.1 REAR COVER
1. Remove the paper tray unit from the main unit.
2. Pull out the paper tray.
3. Remove the rear cover [A] (
x2).
1.1.2 RIGHT COVER
1. Remove the rear cover (Rear Cover).
2. Remove the right cover [A] (
x2).
