Electrical Components
M0C3/M0C4/M0C5/M0C6/M0C7 4-78 SM
Main Board (MF Touch Panel Models)
1. Remove the left cover (Left Cover).

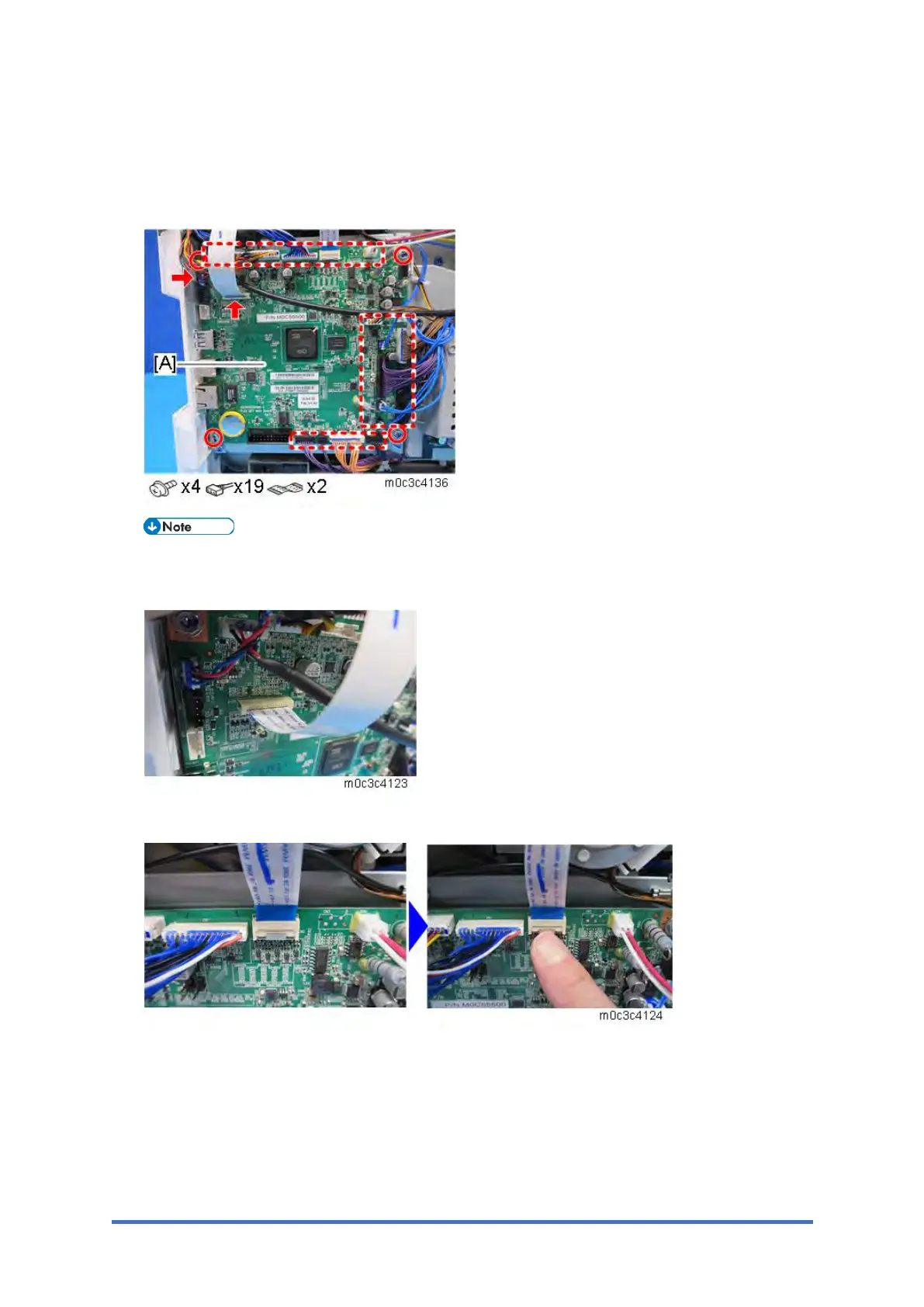

2. Remove the main board [A].
Disconnect the scanner FFC by pulling it out straight, because it does not have a lock
mechanism.
Disconnect the touch panel FFC while pressing the lock release button.
When installing the main board [A], be careful of the connection to the FCU behind it.
To Next Page
